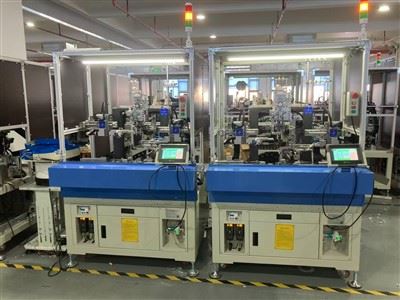

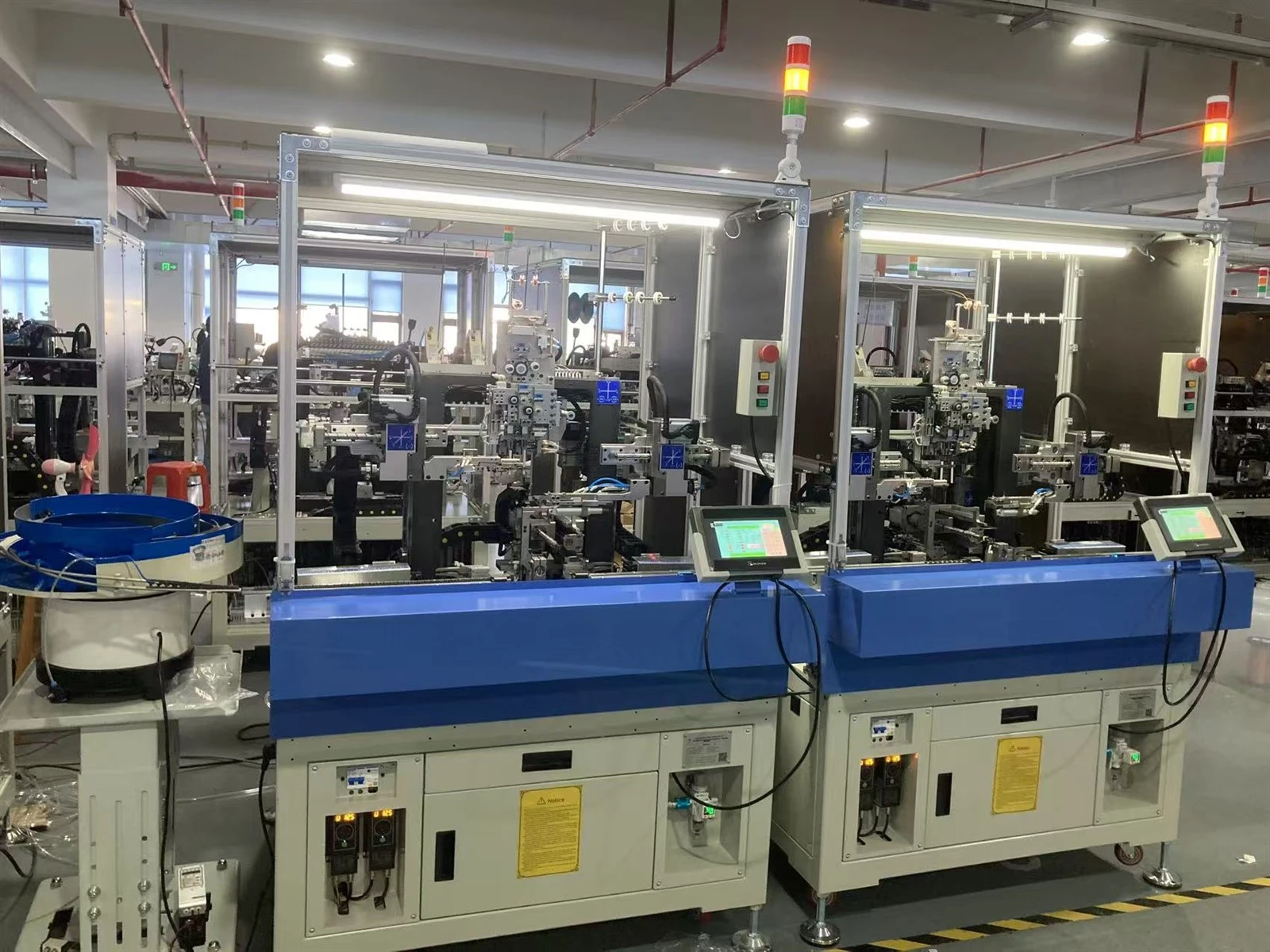

Ob Chav Caj Tes Tes Tsho Casing Winding Tshuab Rau High Frequency Transformer

GWD-S22 Ob Chav Caj Tes Tes Tsho Casing Winding Tshuab|Tsis Siv Neeg Transformer Bobbin Chev Winder



GWD-S22 ob txhais tes tes tsho casing winding tshuab integrates lub tes tsho threading, winding, inter-layer taping & barrier phab ntsa sib sau ua ke . 5000RPM high-speed rau high-frequency transformer & inductor ntau lawm. Txhawb ntau-wire, stranded hlau, thiab inline ntau lawm kab configuration.



Product Overview:

GWD-S22 Ob Chav Caj Tes Tes Tsho Casing Winding Tshuab yog ib qho kev ua haujlwm siab tsis siv neeg coil winding tov engineered rau high-frequency transformers, hwj chim inductors thiab sib nqus-tiv thaiv bobbin winding.



Tsis zoo li cov pa ib leeg-arm coil winders uas cais lub tes tsho threading, winding thiab taping rau hauv ntau qhov chaw nyob ib leeg, ob lub caj npab casing winding tshuab ua kom tiav lub tes tsho, multi-wire winding, inter-layer insulation taping thiab barrier-tape ua nyob rau hauv ib lub voj voog ntawm lub tshuab, txo qis kev tuav tuav thiab cov khoom nruab nrab.



Standard lub sij hawm mus txog tsuas yog ** 8 vib nas this ib winding ** (raws li winding txheej txheem tsis).
Nws txhawb kev ua haujlwm ib leeg lossis cov qauv tsim tawm hauv cov kab sib xyaw ua ke ntawm 2-units, 4-units, 8-units lossis ntau dua, ua kom muaj peev xwm hloov tau yooj yim rau cov khoom siv qis-tso high-volume manufacturing nrog rau ntau qhov sib txawv me me-batch ntau lawm.



Muaj ntau yam khoom siv sib txawv: ob chav caj npab ib kab ib leeg-tube, ob sab caj npab ob-kab ob-kab, ob sab caj npab peb-kab peb-tube, thiab ob txhais caj npab plaub-kab peb- raj threading configurations kom phim qhov sib txawv transformer davhlau ya nyob twg.

1. Dual Robotic-Arm Synchronized Servo Architecture

Qhov no ob npaug - npab- tes tsho-casing winding tshuab txais ** 12-set servo motors tsav dual robotic caj npab **, siv ntau txoj kev sib koom tes tswj kev tswj rau lub tes tsho pub mis, threading, xaim teeb thiab kev ua haujlwm.



- High-precision casting tshuab puag tshem tawm resonance nyob rau hauv siab tshaj 5000 RPM high-speed spindle rotation, zam coil displacement, mis-alignment thiab lub tes tsho offset uas nquag tshwm sim ntawm low-rigidity winding khoom.



- Synchronized motion logic daws qhov teeb meem ntawm kev sib tsoo ntawm lub tes tsho casing insertion thiab xaim routing; Nws tuaj yeem ua tiav mus txog 6-xaim tsis siv neeg xaim-txhim kho, tsim txoj cai-lub kaum sab xis khoov rau cov hlau terminals, thiab paub txog ob-xaim ob-lub tes tsho termination ntawm pib-kawg & tiav-kawg ntawm coils.



2. Universal Wire-Feeding Mechanism rau Fine & Stranded Conductors

Ib qho kev sib koom tuab-nyias hlau pub qauv yog siv los npog cov txheej txheem sib txawv ntawm 0.1 hli yam tsawg kawg nkaus ib lub xaim mus txog ** 1200-strand litz hlau **. Nws ua haujlwm rau enameled hlau, txhob lo lo ntxhuav-them hlau, FIW hlau, zaj duab xis-them hlau thiab peb-txheej insulated hlau.



- Tshwj xeeb xaiv module txhawb 0.06 hli × 600 strands ultra-fine stranded hlau ua.

- Tau tshaj hom bobbin ntsug thiab kab rov tav, npog feem ntau tus qauv transformer bobbin specifications nrog max bobbin txheej txoj kab uas hla 85 hli thiab max lub tes tsho ntev 125 hli.

- Kev sib txuas ntawm xaim geometry tiv thaiv enamel zaj duab xis khawb, tus neeg xyuas pib ncab lossis strand tawg thaum lub sij hawm siab ceev winding.



3. Integrated Taping & Barrier-Wall Forming Station

Ob qhov chaw nres tsheb (taping chaw nres tsheb + barrier daim kab xev chaw nres tsheb) sib koom ua ke txheej txheej rwb thaiv tsev qhwv thiab thaiv phab ntsa ua rau hauv ib qho kev ua haujlwm, tsis yog tom qab txheej txheem phau ntawv taping.



- Nruam rwb thaiv tsev daim kab xev wrapping, inter-layer daim kab xev daim ntawv thov thiab barrier daim kab xev wrapping yog programmable.

- Lub tshuab muab ntau qhov yuam kev hauv lub sijhawm saib xyuas: folded-daim kab xev tswb, lub tes tsho mis-feed tswb, xov hlau tawg tswb thiab tape-shortage tswb. Cov kev tiv thaiv sensor-raws li no txo ​​cov seem seem uas tshwm sim los ntawm cov txheej txheem rwb thaiv tsev.

4. Dedicated Winding-Machine Control System

GREWIN nplooj siab winding tshuab tswj qhov system ua tiav cov txheej txheem ua tiav. Cov neeg khiav dej num teeb tsa cov kev ntsuas winding, kev sib txuas ua ke, lub tes tsho-txoj hauj lwm offsets thiab cov lus tsa suab ntawm qhov kov-screen HMI.



- Complex winding sequences nrog rau tib-txheej multi-wire winding, ABBA sandwich winding, txiv neej-poj niam buckle winding tuaj yeem tsim los yog kev cai-tsim raws li cov neeg siv khoom qauv.

- Lub kaw lus txhawb nqa daim ntawv qhia khaws cia rau cov khoom hloov pauv sai, txo qis qis ntawm cov qauv hloov pauv sib txawv.



5. Modular Upgradable txheej txheem modules

Tus neeg kho tshuab thav duab reserves mounting interfaces rau xaiv txheej txheem modules, yog li cov neeg muas zaub tuaj yeem txuas lub peev xwm ntawm lub tshuab yam tsis tau yuav khoom tshiab:



Hlau-kawg daim kab xev wrapping (hloov lub tes tsho), daim kab xev fold-rov qab, daim nplaum me me, tooj liab-ntawv ci winding, hlau-kawg khi, dub-dawb dual-xim lub tes tsho ua, ya-hlau khi ko taw, ob chav tuav-phab ntsa chaw nres tsheb, ob lub roj hmab-txheej chaw nres tsheb, laser stripping rau peb-txheej hlau tsis muaj rwb thaiv tsev / zaj duab xis.

Standard Configuration

✅ Integrated taping station + barrier tape station, ua tiav tag nrho transformer winding nyob rau hauv ib lub voj voog
✅ Tsis siv neeg lub tes tsho pub & nws pib qhov chaw; tsis muaj phau ntawv qhia kev kho kom haum rau lub tes tsho teeb
✅ Intuitive programming HMI, daim ntawv qhia txuag & rov qab rau kev hloov khoom sai
✅ High-precision cam khwb cia hlau thav duab qauv rau lub sijhawm ntev-khiav ruaj khov
✅ Multi-channel fault tswb system rau daim kab xev, lub tes tsho, hlau tawg thiab cov khoom tsis txaus



Yeem / Upgradable Configuration

Multi-tshuab inline kev twb kev txuas, hlau-kawg daim kab xev wrapping es tsis txhob ntawm lub tes tsho, daim kab xev fold-rov qab, me me daim kab xev pasting, tooj liab ntawv nyiaj winding, hlau-kawg khi, tib-txheej multi-wire winding, peb-xaim co-winding nyob rau hauv ib txheej, dub-thiab-dawb lub tes tsho, ya-xaim khi taw taw, ob-txoj hauj lwm nyob rau hauv lub laser multi-layer insulated hlau, frameless Nuomei-paper winding, ABBA sandwich winding, txiv neej-poj niam buckle winding.
Cov txheej txheem kev cai tsim kho raws li cov neeg siv khoom lub cev qauv yog muaj.



Technical Specifications



Yam khoom	Specification
Tus naj npawb ntawm spindles	1
Qhov siab tshaj plaws	5000 RPM
Qhov siab tshaj plaws Bobbin Outer Diameter	8 5MM
Tag Nrho Lub Tes Tsho Ntev	125MM IB
Siv tau Wire Diameter	0.1-0.8 hli
Tswj System	GREWIN nplooj siab winding tshuab tswj qhov system
Cov Khoom Siv Hluav Taws Xob Specifications	AC 220V 50HZ Cov
Cua Supply Specifications	0.5--0.6
Tshuab Dimensions	1200(L)*1100(W)*1800(H)
Kev ntsuas fais fab	3000W
Tshuab hnyav	450 KG
Servo Tsav	12 Pcs
Qauv	2 robotic caj npab





Daim ntawv thov & Compatibility

Ob chav caj npab tes tsho casing winding tshuab GWD-S22 yog tsim los rau manufacturers ntawm high-frequency transformers, SMPS transformers, hwj chim inductors thiab sib nqus Cheebtsam. Nws ua tiav cov kev xav tau ntau lawm rau cov qauv hloov pauv raws li qhov ntau thiab tsawg ntawm cov txheej txheem winding sophisticated. Lub tshuab tuaj yeem khiav ua ib chav nyob ib leeg lossis koom ua ke rau hauv cov kab ntau lawm automation.



Cov lus nug uas nquag nug

Q1: Dab tsi yog qhov sib txawv tseem ceeb ntawm lub tes tsho ob sab caj npab casing winding tshuab thiab ib qho yooj yim bobbin winder?

A: Ordinary coil winders tsuas yog ua tiav cov hlau winding. Ob chav-arm qauv ntawm lub tshuab no yeej paub txog lub tes tsho threading, davhlau ya nyob twg casing, inter-layer taping thiab barrier phab ntsa tsim nyob rau hauv-kab, tshem tawm ntau phau ntawv tom qab winding ua hauj lwm.



Q2: Lub tshuab no puas tuaj yeem tuav litz hlau / ntau-stranded hlau?

A: Yog. Nws txhawb litz hlau mus txog 1200 strands. Optional nplooj siab qauv rau ultra-fine 0.06 hli × 600 strands stranded hlau yog muaj. Tau tshaj enameled hlau, txhob lo lo ntxhuav-them hlau, FIW thiab 3-txheej insulated hlau.



Q3: Kuv puas tuaj yeem txuas ntau lub tshuab GWD-S22 rau hauv ib kab ntau lawm?

A: Yog. Modular mechanical thiab hluav taws xob interfaces txhawb 2-unit / 4-unit / 8-unit inline ua ke rau pawg tsim khoom.



Q4: Puas yog kev cai winding txoj kev txhim kho kev txhawb nqa?

A: Yog. Peb tuaj yeem tsim tshwj xeeb winding logic xws li ABBA sandwich winding, frameless Nuomei-paper winding raws li cov neeg siv khoom-muab cov qauv.

Tau Hauv Kov

📩 Email: sales4@coilwindingmachinechina.com
📞 WhatsApp / Txawb: +86 183 2206 6726
🌐 Lub Vev Xaib: www.coilwindingmachinechina.com



Xa peb koj cov qauv transformer bobbin los yog kev kos duab.
Peb yuav muab cov ntaub ntawv ntxaws ntxaws, video demo thiab cov lus sib tw hauv 24 teev ua haujlwm.
