Litz Hlau Toroidal Winding Tshuab
Qauv: GW-90T
Hlau loj: 0 5-1.8mm
Yam tsawg kawg nkaus sab hauv txoj kab uas hla: 15mm
Qhov siab tshaj plaws ua tiav: 80mm
Qhov siab tshaj plaws sab nraud txoj kab uas hla: 35-80mm
Max ceev: 600rpm (0.5-1.0mm) 300rpm (1.1-1.8mm)
Daim kab xev Magazine txoj kab uas hla: 310mm
Hauj lwm lawm

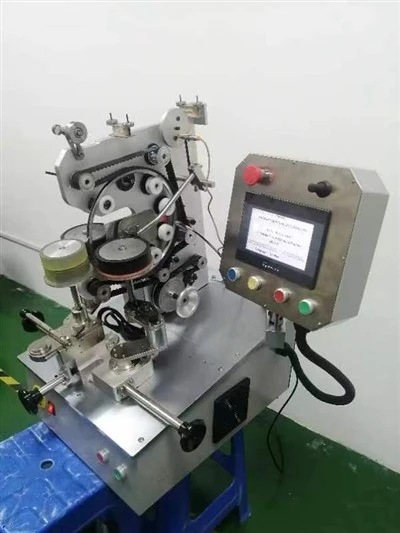

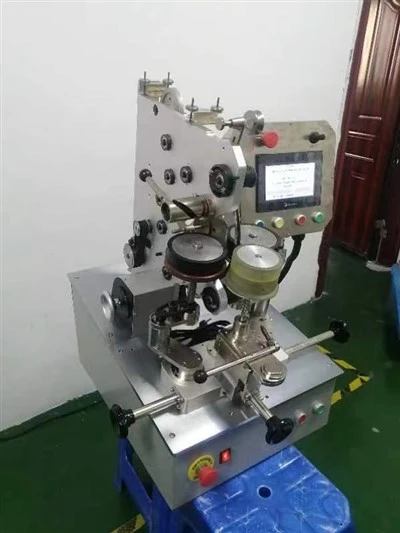

GW-90T Litz Hlau Toroidal Winding Tshuab
Kev piav qhia luv luv:
Hom tshiab PLC + kov npo tswj qhov system, German tsim tshuab,
Lub servo lub cev muaj zog + ua ke nrog qhov sib thooj hloov suav ua kom ntseeg tau ntau pua feem pua qhov tseeb, thiab qhov siab tshaj plaws ntawm lub tshuab taub hau tuaj yeem ncav cuag 1000rpm;
lub stepper lub cev muaj zog ua kom muaj kev sib txuas zoo;
tag nrho tsis siv neeg / phau ntawv teeb tsa ntawm kev taw qhia pem hauv ntej thiab thim rov qab ntawm cov khoom;
tag nrho tsis siv neeg / phau ntawv tswj kab nrug;
tag nrho tsis siv neeg / phau ntawv ntxiv thiab rho tawm ntawm winding ceev;
SPECIFICATION:
|
Hlau loj |
0 5-1.8 hli |
|
Yam tsawg kawg nkaus hauv txoj kab uas hla |
15 hli |
|
Qhov siab ua tiav siab kawg |
80 hli |
|
Maximum tiav sab nraud txoj kab uas hla |
35-80 hli |
|
Max ceev |
600rpm(0.5-1.0mm) 300rpm(1.1-1.8mm) |
|
Daim kab xev Magazine diameter |
310 hli |
Litz hlau toroidal winding tshuab yog cov khoom siv tsis txaus ntseeg uas tau hloov pauv lub ntiaj teb ntawm hluav taws xob engineering. Lawv yog cov tshuab uas muaj peev xwm cua xaim nyob rau hauv ib txoj kev uas zoo heev txhim kho lawv cov hluav taws xob kev ua tau zoo. Litz hlau yog ib hom hlau uas yog tsim los ntawm ib tus kheej insulated strands braided ua ke. Qhov kev teeb tsa no tso cai rau cov hlau kom muaj qhov txo qis ntawm daim tawv nqaij thiab yog li ntawd, txo qhov kev tiv thaiv thiab kev poob uas cuam tshuam nrog cov hluav taws xob ntau zaus.

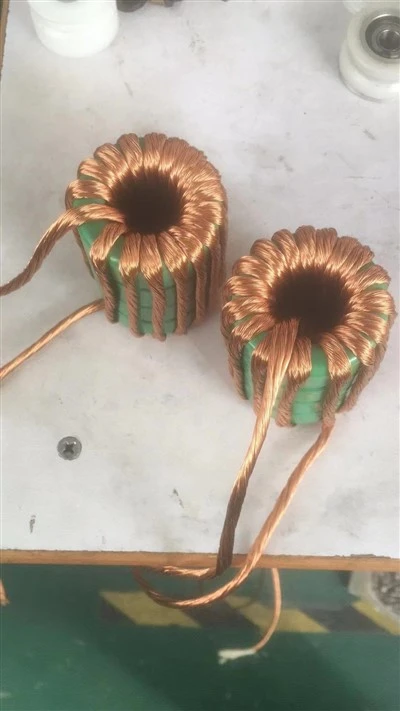

Lub tshuab toroidal winding yog tsim los tsim toroidal-shaped coils siv Litz hlau. Lub tshuab yog nruab nrog ntau yam cuab yeej uas ua kom nws tsim cov coils hauv ntau qhov ntau thiab tsawg thiab cov duab. Cov tshuab no muaj qib siab ntawm automation uas tso cai rau lawv los tsim cov coils nrog qib siab ntawm qhov tseeb thiab sib xws. Qhov no yog qhov tseem ceeb tshwj xeeb rau cov ntawv thov uas xav tau qib siab ntawm qhov raug thiab kev ntseeg tau.
Lub Litz hlau toroidal winding tshuab muaj ntau yam zoo dua li cov txheej txheem winding. Lub tshuab muaj kev ua haujlwm ntau dua nyob rau hauv cov nqe lus ntawm tus nqi ntawm cov xaim siv thiab lub sijhawm siv los tsim cov coils. Qhov no txhais tau tias txuag nqi rau cov chaw tsim khoom thiab thaum kawg, rau cov neeg siv kawg.
Lub tshuab kuj tseem zoo ib puag ncig zoo vim nws tsim cov khoom pov tseg tsawg dua li cov txheej txheem ib txwm muaj. Tsis tas li ntawd, Litz hlau toroidal winding tshuab muaj kev nyab xeeb dua rau kev khiav lag luam vim nws tsis tas yuav muaj kev cuam tshuam hauv phau ntawv thaum lub caij winding.
Hauv kev xaus, Litz hlau toroidal winding tshuab yog ib qho khoom siv zoo kawg nkaus uas tau hloov pauv txoj kev peb tsim hluav taws xob coils. Nws cov qib high efficiency, precision, thiab kev nyab xeeb tau ua rau nws muaj txiaj ntsig ntxiv rau kev lag luam hluav taws xob. Nrog nws lub peev xwm los tsim cov coils zoo, Litz hlau toroidal winding tshuab yog ib qho yuav tsum muaj rau txhua lub khw muag khoom los txhim kho lawv cov khoom siv hluav taws xob.
