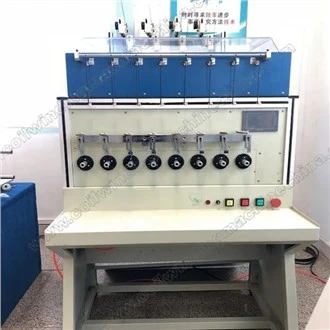

GW-92008 Lub cev muaj zog Bobbin CNC Chev Winding Tshuab
Qauv: GW -92008
Tswj System: CNC 6 Axis AC servo lub cev muaj zog synchronizing tswj
Twisting Length: 250mm (Max)
Txoj Kev Cia: Windows interface PC nrog USB connector & DVD ROM
Twisting Number: xaiv muaj nuj nqi
Winding Spindle: 8 spindle, spindle nrug: 55mm
Fais fab mov: 220V ± 10 feem pua, ib theem
Hauj lwm lawm
SPECIFICATION:
Tswj System | CNC 6 Axis AC servo lub cev muaj zog synchronizing tswj | Twisting Ntev | 250mm (Max) |
Txoj kev khaws cia | Windows interface PC nrog USB connector & DVD ROM | Twisting Number | Kev xaiv muaj nuj nqi |
Winding spindle | 8 spindle, spindle nrug: 55mm | Hwj chim Source | 220V ± 10 feem pua, ib theem |
Spindle Angle | 360 degree / tig, teeb tsa chav tsev 0.1 degree | Kev siv fais fab | 3 KVA ua |
Nres qhov tseeb | ± 0.1 degree | Huab cua | 4-6kgf/cm² |
Nozzle txav deb | X Axis 1{{1}0mm, txav tsev 0.001mm Y Axis 75mm, txav tsev 0.001mm Z Axis 65mm, txav tsev 0.001mm | Tshuab Dimension | 110 × 130 × 155 cm |
Hlau Loj | 0.02mm -0.3mm | Net nyhav | 5 40kq |
Qhov dav dav | 85mm (Max) | Packing Dimension | 124 × 124 × 166 cm |
Wrapping ceev | 150 tig / Min (Max) | Qhov hnyav tag nrho | 6 50kg |
Wrapping Angle | 0 degree 90 degree 120 degree | Cua ceev | 18000RPM (Max) |
NTA:
NC winding apparatus, lub zog txuag.
Tom qab qee qhov kev cob qhia yooj yim, cov neeg ua haujlwm hauv lub rooj cob qhia tuaj yeem ua lawv txoj haujlwm ua haujlwm tau zoo dua.
Kev tsim khoom thiab kev ua tau zoo tau nce ntxiv txij li lub tshuab tib lub sijhawm tam sim no tuaj yeem raug mob los ntawm kev siv ntau yam windings, tso cai rau ib tus neeg ua haujlwm ntawm ntau tshaj kaum tus neeg ua haujlwm ib zaug.
Lub tshuab winding tsis siv neeg tuaj yeem ua haujlwm tau zoo, ua kom muaj txiaj ntsig zoo, thiab cov nqi qis rau kev lag luam. tsis siv neeg winding ntaus ntawv uas siv tsawg zog.
Tom qab qee qhov kev cob qhia yooj yim, cov neeg ua haujlwm hauv lub rooj cob qhia tuaj yeem ua lawv txoj haujlwm ua haujlwm tau zoo dua.
KEV PAB CUAM:
NC winding apparatus, lub zog txuag. Tom qab qee qhov kev cob qhia yooj yim, cov neeg ua haujlwm hauv lub rooj cob qhia tuaj yeem ua lawv txoj haujlwm hauv kev muaj siab hlub tshua.
Kev tsim khoom thiab kev ua tau zoo tau nce ntxiv txij li lub tshuab tib lub sijhawm tam sim no tuaj yeem raug mob los ntawm kev siv ntau yam windings, tso cai rau ib tus neeg ua haujlwm ntawm ntau tshaj kaum tus neeg ua haujlwm ib zaug.
Lub tshuab winding tsis siv neeg tuaj yeem ua haujlwm tau zoo, ua kom muaj txiaj ntsig zoo, thiab cov nqi qis rau kev lag luam. tsis siv neeg winding ntaus ntawv uas siv tsawg zog.
Tom qab qee qhov kev cob qhia yooj yim, cov neeg ua haujlwm hauv lub rooj cob qhia tuaj yeem ua lawv txoj haujlwm hauv kev muaj siab hlub tshua.
APPLICATION:
Me me EI transformers, teeb liab transformers, inductors, lim, choke coils, relays, tam sim no contactors, valve coils, solenoid coils, thiab telecom spool transformers yog ib qho ntawm cov khoom raug mob los ntawm tsis siv neeg winding tshuab. Yog tsis xav tau tus neeg teb xov tooj, lub kauj tuaj yeem ua tiav tag nrho autonomously.
Cim npe nrov: gw-92008 lub cev muaj zog bobbin cnc coil winding tshuab, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe, ua nyob rau hauv Suav teb
