Inductor Chev Winding Tshuab (Round & Flat Hlau Compatible) - Xauv Kev Ua Haujlwm Tshiab rau Cua -Core Coil Ntau Lawm hauv ntau qhov kev lag luam
Nrog rau kev loj hlob sai ntawm kev tsim hluav taws xob, kev lag luam tsheb, kev ua pwm thiab lwm yam kev lag luam,huab cua-core coils, raws li cov khoom tseem ceeb, lawv cov precision, efficiency thiab adaptability ncaj qha txiav txim siab qhov zoo thiab kev sib tw ntawm cov khoom downstream. Ib txwm inductor coil winding tshuabfeem ntau muaj qhov mob taw tes ntawm ib qho kev ua haujlwm - lawv tsuas yog ua taukab hlau rhuavlos yog hloov mus raucov kab ncaj nraim, uas tsis tuaj yeem ua tau raws li qhov xav tau ntawm kev lag luam rau ntau- specification thiab ntau- homhuab cua-core coils. Qhov no ua rau cov tuam txhab lag luam los nqis peev ntau ntawm cov nqi hauv kev yuav khoom ntau yam khoom siv, tuav qhov chaw thiab txo cov khoom lag luam. Txawm li cas los xij, lub inductor coil winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraim, nrog lub ntsiab kom zoo dua ntawm "ib lub tshuab rau ntau yam kev siv", rhuav tshem cov kev txwv thev naus laus zis thiab dhau los ua cov khoom siv zoo tshaj plaws rau cov lag luam hauv ntau qhov kev lag luam los txo cov nqi, nce kev ua tau zoo thiab txhim kho kev tsim khoom.
Ib lub tshuab sib xws nrog Dual Wires, rhuav tshem cov txheej txheem kev tsim khoom
Lub ntsiab kev sib tw ntawm ibround hlau winding tshuablies nyob rau hauv nws lub peev xwm los hloov mus rau txawv specifications thiab hom ntawm cov xov hlau, ua tau raws li cov kev xav tau ntawm ntau haiv neeghuab cua-core coils. Ib txwmwinding tshuabnyob rau hauv kev ua lag luam yog txwv los ntawm cov neeg kho tshuab qauv thiab tswj systems, ua rau nws nyuaj rau flexibly hloov ntawmkab hlau rhuavthiabcov kab ncaj nraim. Lawv feem ntau xav tau kev hloov kho ntawm cov cuab yeej siv tsis tau thiab hloov cov cuab yeej cuab tam, uas tsis yog tsuas yog lub sijhawm - siv thiab ua haujlwm - hnyav, tab sis kuj muaj teeb meem xws li winding precision deviation thiab hlau hnav, cuam tshuam rau kev ruaj ntseg ntawmcoilzoo.
Cov6-axis cua core ntsug winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraimua tiav seamless adaptation thiab ua tau zoo ntawm dual nyob ntawm tej los ntawm optimized mechanical qauv tsim thiab ntse tswj system upgrading. Cov cuab yeej tau nruab nrog qhov kev hloov pauv tsis hloov pauv thiab tsim ua - nyob rau hauv cov ntaub ntawv ntawm winding tsis rau ntau hom hlau. Raws li cov ntaub ntawv sib txawv (tooj liab, aluminium, alloy, thiab lwm yam) thiab hlau inch specifications ntawmpuag ncigthiabcov kab ncaj nraim, nws tuaj yeem ua tau raws li qhov sib tw winding ceev, nro thiab xaim kev sib nrug. Tsis muaj phau ntawv rov qab debugging yuav tsum tau, thiab xaim hloov pauv tuaj yeem ua tiav nrog ib tus yuam sij, uas ua rau lub sijhawm hloov pauv sai thiab txhim kho kev tsim khoom txuas ntxiv.
Yuav kom ua tau raws li qhov muaj peev xwm ntau lawm thiab kev xav tau ntawm cov neeg siv khoom sib txawv, peb muab peb tus qauv paub tab, npog peb qhov loj:6-axis cua-core coil, tag nrho tsis siv neeg tiaj hlau puag ncig lub qhov, thiab6-axis camless CNC. Cov parameter yog raws li nram no:
|
Yam khoom |
GWY-820 6-Axis Air Core Vertical Winding Tshuab |

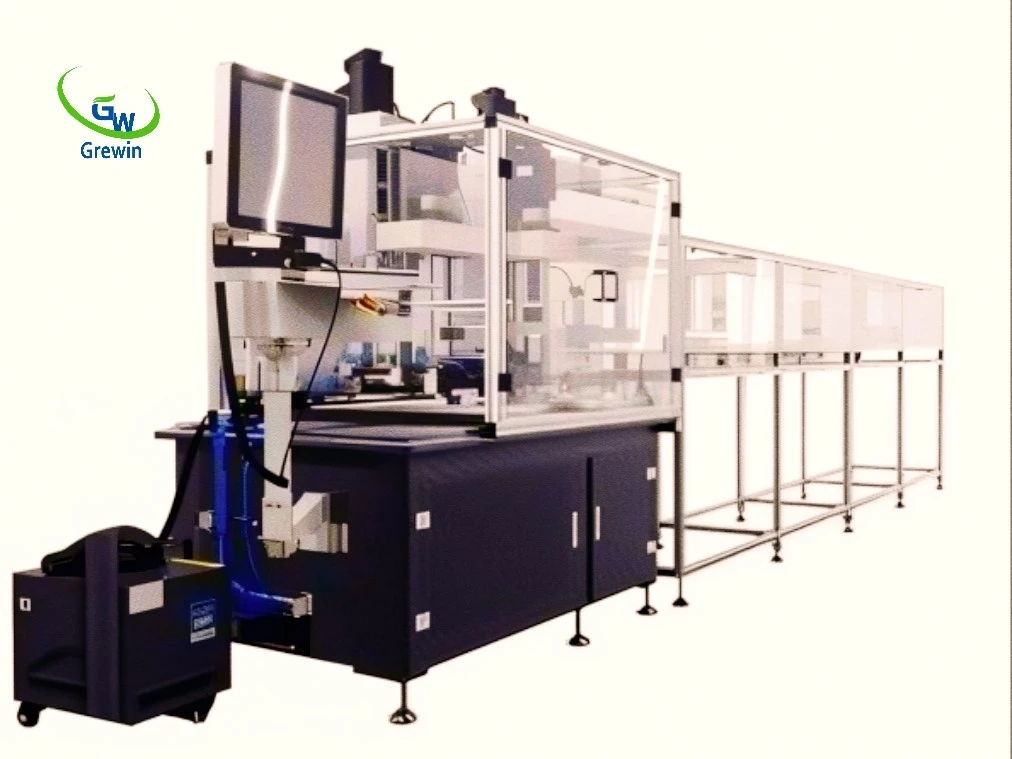

GWY-860 Tag Nrho Tsis Siv Neeg Flat Hlau Round Qhov Winding Tshuab |
GWY-680 6-Axis Camless CNC Flat Wire Vertical Winding Tshuab |
|---|---|---|---|
|
Siv tau Hlau |
Round hlau 0.2-2.0mm; Flat hlau Tsawg dua los yog sib npaug li 5mm² |
Flat hlau Less tshaj los yog sib npaug rau 30mm², dav -to-thickness ratio Tsawg dua los yog sib npaug rau 15 npaug |
Flat hlau Tsawg dua los yog sib npaug li 50mm² |
|
Tswj Txoj Kev |
CNC 6-axis servo |
Computer servo dual- chaw nres tsheb |
6-axis camless ywj siab servo |
|
Maximum winding tig |
999T |
100T (sab laug thiab txoj cai tig) |
Teem raws li xav tau |
|
Kev Ua Tau Zoo |
0-55pcs / min |
0-55pcs / min |
Siab - nrawm thiab ruaj khov |
|
Coil Qhov siab/Length |
Qhov siab tshaj plaws cable ntev 42mm |
Qhov siab tshaj plaws coil qhov siab 105mm |
Unlimited hlau pub ntev |
|
Ua Haujlwm Cua Siab |
0.4-0.8MPa |
0.4-0.8MPa |
- |
|
Tag Nrho Lub Zog |
5kW / Ib zaug -theem 220V |
11 kW transformer |
Txog 9 kW |
|
Input voltage |
Ib zaug -theem 220V |
Peb -theem 380V hloov mus rau 220V |
Peb -theem 220V |
|
Zuag qhia tag nrho Dimensions |
1250 × 850 × 1650 hli |
Kwv yees li . 9400 × 1500 × 2000mm |
1600 × 1350 × 1750mm |
Seb nws yog precision microhuab cua-core coilsqhov txhab nrog zookab hlau rhuavlos yog siab-hwj chim, me- ntimhuab cua-core coilsmob nrogcov kab ncaj nraim, cov cuab yeej tuaj yeem tswj xyuas qhov kev sib tw winding kom raug, kom ntseeg tau tias cov xov hlau tig tau zoo, tsis muaj burrs thiab sib tshooj. Qhov tseem ceeb parameter ntawm lubcoil, xws li inductance thiab tsis kam, ua tau raws li cov qauv kev lag luam thiab ua tau raws li qhov xav tau ntawm cov xwm txheej sib txawv.
Qhov no "ib lub tshuab siv ntau yam" tsim tsis tsuas yog txuag cov lag luam tus nqi ntawm kev yuav khoom ntau yam khoom siv, tab sis kuj txo cov cuab yeej hneev taw thiab tus nqi ntawm cov cuab yeej ua haujlwm thiab kev saib xyuas nrog rau kev siv phau ntawv. Nws yog tshwj xeeb tshaj yog haum rau zus tau tej cov me me thiab nruab nrab batch ntawm multi- specificationhuab cua-core coils, ua kom cov lag luam hloov tau yooj yim hauv kev teb rau ntau yam kev txiav txim thiab kev txhim kho kev lag luam kev sib tw.
Ua kom haum rau ntau yam huab cua-Core Coils, npog ntau qhov kev xav tau ntawm ntau qhov kev lag luam
Cua -core coilsmuaj ntau yam ntawm daim ntawv thov scenarios, thiab kev lag luam sib txawv muaj qhov sib txawv tseem ceeb hauv cov specifications, precision thiab kev ua haujlwm ntawmcoils. Covflat hlau winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraim, nrog muaj zog adaptability, tuaj yeem tsim ntau yamhuab cua-core coils, tag nrho npog cov kev lag luam tseem ceeb xws li electronics, automotive manufacturing thiab pwm, thiab ua cov cuab yeej tseem ceeb hauv cov kab ntau lawm.
Electronics Kev Lag Luam:Cov Khoom Siv Zoo Tshaj Plaws rau Precision Micro Cua -Core Coils
Kev lag luam hluav taws xob yog qhov tseem ceeb ntawm daim ntawv thov kev lag luamhuab cua-core coils. Seb nws yog microinductor coilshauv cov neeg siv khoom siv hluav taws xob (xov tooj ntawm tes, khoos phis tawj, lub mloog pob ntseg) lossis siab - zaushuab cua-core coilshauv cov khoom siv sib txuas lus (5G hauv paus chaw nres tsheb, routers), lawv muaj cov kev xav tau siab heev rau winding precision thiabcoilsib xws. Covcua core coil winding khoomsib haum nrogpuag ncigthiabcov kab ncaj nraimtuaj yeem raug cua ultra- cov xov hlau zoo ntawm 0.08mm thiab siab dua. Los ntawm micron- theem precision tswj, qhov yuam kev winding yog tswj nyob rau hauv qhov tsim nyog ntau yam. Cov tsimhuab cua-core coilsmuaj qhov zoo ntawm Q tus nqi siab thiab tus kheej siab -resonant zaus, uas txo cov teeb liab poob thiab xyuas kom ruaj khov ntawm cov khoom siv hluav taws xob. Nyob rau tib lub sijhawm, cov cuab yeej siv tau yooj yim hloov ntawmpuag ncigthiabcov kab ncaj nraim, ntsib covcoilKev tsim khoom xav tau ntawm cov khoom siv hluav taws xob sib txawv thiab ua kom haum rau txoj kev loj hlob ntawm cov khoom siv hluav taws xob tshiab xws li 5G kev sib txuas lus thiab cov khoom siv ntse.
Automotive Manufacturing Kev Lag Luam: Txhim Kho Kev Tsim Nyog Zoo rau High-Power Air-Core Coils
Nrog rau kev loj hlob sai ntawm cov tsheb tshiab lub zog thiab cov tsheb ntse, qhov kev thov rauhuab cua-core coilsnyob rau hauv kev lag luam automotive kev lag luam yog nce ib hnub. Tshwj xeeb tshaj yog rau cov khoom xws li ntawm -board sensors, tsav motors thiab them pawg, ntau lub siab - zog, siab - kub resistant thiab me me - ntimhuab cua-core coilsxav tau. Xws licoilsfeem ntau raug mob nrogcov kab ncaj nraim, which can effectively improve power density and reduce resistance loss, while traditionalwinding tshuabyog ib qho nyuaj kom ua tau zoo thiab meej winding ntawmcov kab ncaj nraim.
GWY-860 thiab GWY-680 series yog nruab nrog tshwj xeebtxoj kab ncaj nraimwinding mechanism, uas tuaj yeem txhim kho cov txheej txheem loj -sectioncov kab ncaj nraimntawm30mm²-50mm², kom raug tswj cov xaim kev sib txuas thiab nro, zam kev hnav ntawm lub cev hlau. Cov tsimhuab cua-core coilsmuaj cov cua kub zoo thiab muaj zog ceev ceev, ua tau zoo rau cov kev xav tau ntawm lub zog tshiab tsav tsheb tsav tsheb thiab ntawm - cov khoom siv hluav taws xob, pab cov tuam txhab tsim tsheb ua kom tiav cov khoom kho dua tshiab.
Pwm Kev Lag Luam: Cov cuab yeej siv tau yooj yim rau Customized Cua -Core Coils
Hauv kev lag luam pwm,huab cua-core coilsyog dav siv nyob rau hauv cov khoom xws li pwm cua sov thiab electromagnetic induction pwm. Xws licoilsfeem ntau muaj ntau yam specifications thiab muaj zog customized xav tau kev pab, uas muaj siab xav tau rau qhov yooj thiab adaptability ntawmcov khoom siv winding. Covinductor coil winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraimtxhawb customized winding parameter nqis, thiab tuaj yeem hloov kho tus naj npawb ntawm winding lem thiab hlau inch specifications raws li qhov loj thiab lub hom phiaj ntawm cov pwm.
GWY-8206-axisqauv tuaj yeem ua tiav ntau yam kaiscoilsxws li A, E2, D, K thiab multi- txheej torsion caij nplooj ntoos hlavcoils. Ib lub tshuab npog cov paround hlauthiab tshwj xeeb- zoo liflat wirecoils. Nyob rau tib lub sijhawm, nws muaj qhov tsis siv neeg winding, txiav thiab ntsuas kev ua haujlwm, txo cov kev cuam tshuam ntawm phau ntawv, txhim kho kev tsim khoom thiab ua kom zoo sib xws ntawm kev kho.coils, thiab muab kev hloov pauv thiab ua haujlwm zoo rau cov lag luam pwm.
Intelligent Upgrade Empowers Efficient Enterprise Production
Ntxiv rau qhov tseem ceeb ntawm kev sib raug zoo nrogpuag ncigthiabcov kab ncaj nraimthiab adaptation rau ntau yamhuab cua-core coils, niaj hnubCNC winding tshuabkuj tau koom ua ke cov cuab yeej ntse los txhim kho kev tsim khoom thiab cov khoom zoo. Cov cuab yeej yog nruab nrog aCNCTus lej tswj qhov system thiab tus txiv neej kov lub vijtsam- tshuab interface, uas yooj yim thiab yooj yim rau kev khiav lag luam. Cov neeg ua haujlwm tuaj yeem teem caij winding tsis tau sai thiab saib xyuas cov txheej txheem ntau lawm kom paub txog tag nrho cov khoom siv tsis siv neeg, zoo heev txo cov kev ua haujlwm yuam kev. Qee cov qauv siab - kawg kuj tau nruab nrog kev lag luam Internet ntawm Yam khoom module, uas tuaj yeem sau cov ntaub ntawv ntau lawm hauv lub sijhawm tiag tiag, paub txog tag nrho lub neej voj voog traceability ntawm cov khoom, thiab muaj kev ua txhaum thaum ntxov ceeb toom ua haujlwm, txo cov khoom siv poob qis thiab ua kom ruaj khov thiab ruaj khov.
Tsis tas li ntawd, cov cuab yeej siv lub siab - lub zog ncej thiab precision kis mechanism, uas khiav ruaj khov nrog suab nrov tsawg. Cov khoom tseem ceeb yog hnav- tiv taus thiab ruaj khov, txuas ntxiv lub neej kev pab cuam ntawm cov khoom siv thiab txo cov lag luam kev lag luam thiab cov nqi tu. Seb nws yog loj ntau lawm los yog customized ntau lawm, lubinductor coil winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraimtuaj yeem ua tiav cov hom phiaj ntawm "kev ua haujlwm siab, kev ua haujlwm siab, kev txuag hluav taws xob thiab kev hloov pauv", pab cov lag luam txhim kho lawv cov kev sib tw tseem ceeb.
Xaus: Ib lub tshuab rau ntau yam kev siv, xauv tshiab muaj peev xwm ntau lawm hauv ntau qhov kev lag luam
Tawm tsam keeb kwm yav dhau los ntawm kev hloov pauv thiab txhim kho kev lag luam kev lag luam, cov lag luam muaj cov kev xav tau ntau dua rau kev ua tau zoo, yooj yim thiab kev lag luam ntawm cov cuab yeej tsim khoom. Covtag nrho tsis siv neeg ca hlau round qhov winding tshuabsib haum nrogpuag ncigthiabcov kab ncaj nraimrhuav tshem cov kev txwv kev ua haujlwm ntawm ib txwm muajflat hlau coil winding tshuab nrog "ib lub tshuab siv ntau yam". Nws tuaj yeem tsim ntau yamhuab cua-core coils, dav yoog raws cov kev xav tau ntawm ntau yam kev lag luam xws li electronics, automotive manufacturing thiab pwm. Nws tuaj yeem tsis tsuas yog pab cov tuam txhab txo cov nqi tsim khoom thiab txhim kho kev tsim khoom, tab sis kuj ua tau raws li ntau haiv neeg thiab kev khocoilkev xav tau ntau lawm, dhau los ua cov cuab yeej tseem ceeb rau kev lag luam hauv ntau qhov kev lag luam los txo cov nqi, nce kev ua tau zoo thiab txhim kho cov khoom.
Nyob rau hauv lub neej yav tom ntej, nrog kev txhim kho txuas ntxiv ntawm kev txawj ntse thiab tsis siv neeg thev naus laus zis,industrial winding khoomyuav ntxiv optimize compatibility thiab precision, integrate ntau ntse zog, muab ntau npaum thiab meej daws rauhuab cua-core coilntau lawm nyob rau hauv ntau yam industries, thiab pab lub siab - kev loj hlob zoo ntawm kev lag luam manufacturing.
