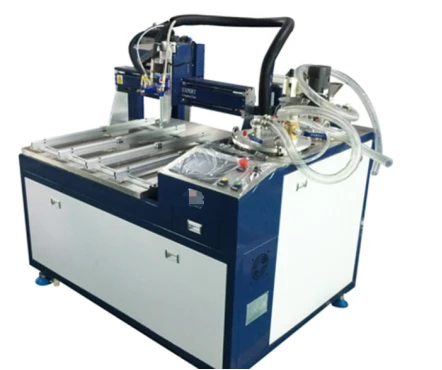

Ua Kua Nto Epoxy Resin Filling Tshuab



GW-900PM Epoxy Filling tshuab



Peb-axis platform	taug kev	700mm ╳700mm ╳ 100mm
	Kev khiav ceev	XY: 250mm / s Z: 100mm / s
	Displacement raug	Tsawg dua los yog sib npaug rau ±0.1mm
Ob lub ntsiab lus	Glue ratio	1 :1 ---10:1(Adjustable in range)
	Glue tso zis ceev	1g/s --12g/s
	Glue dispensing raug	Tsawg dua lossis sib npaug ± 1%
Program Inventory		99个
Txoj kev ua haujlwm		Phau ntawv / Auto

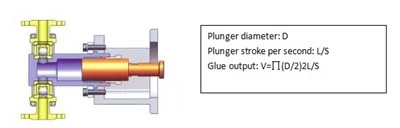

Kev tswj kom muaj nuj nqis		PLC / ob lub tog raj kheej plunger
Ratio / kua nplaum tswj kom muaj nuj nqis		Digital Input
Automation Tswj System		Kov npo / khawm hloov / handheld programmer
Glue supply unit		Dynamic mixing / tsis siv neeg tu
Cia lub thoob		Stainless hlau chim (A25L / B10L), Ntxuav thoob (5L)
		Liquid level sensing (theem qis / qib siab)
		AB Glue chim mix
		Glue qhov kub thiab txias txias (chav kub -80 degree)
		Tsis siv neeg thauj khoom
		Nqus degassing
		Kua nplaum lim
Input cua siab		0.4MPa-0.7MPa
Fais fab mov		220V / 50Hz / 5000W
Qhov ntev		1500mm × 1000mm × 1500mm





Raws li qhov kev thov rau cov khoom lag luam zoo thiab ruaj khov epoxy resin tseem nce ntxiv, qhov kev xav tau ntawm cov tshuab filling tau dhau los ua qhov tseem ceeb. Ib qho ntawm feem ntau nrhiav-tom qab filling tshuab yog cov kua nto epoxy resin filling tshuab, uas muaj precision thiab raug nyob rau hauv daim ntaub ntawv sau. Lub tshuab no tau tsim los ua haujlwm seamlessly nrog viscous epoxy resin kua, kom ntseeg tau tias tsawg kawg nkaus nkim thiab tsim khoom siab. Hauv tsab xov xwm no, peb yuav tshawb txog ntau yam txiaj ntsig ntawm cov kua dej saum npoo av epoxy resin filling tshuab thiab nws tuaj yeem hloov kho cov txheej txheem epoxy resin filling li cas.



Precision thiab raug

Ib qho txiaj ntsig tseem ceeb ntawm cov kua dej saum npoo epoxy resin filling tshuab yog nws qhov tseeb thiab qhov tseeb. Lub tshuab no tau tsim los sau cov kua dej epoxy resin nrog qhov raug siab, ua kom cov khoom siv tsawg tsawg thiab ua haujlwm siab tshaj plaws. Lub tshuab filling lub taub hau yog tsim los tsim kom muaj lub foob nyob ib puag ncig lub thawv ntim, uas tiv thaiv kev nchuav lossis xau. Qhov no txhais tau hais tias cov kua epoxy resin tau sau meej meej rau qib uas yuav tsum tau ua, uas ua kom zoo ib yam hauv txhua daim ntawv thov sau.

Ntau yam

Lub tshuab ua kua nto epoxy resin filling tshuab yog ntau yam thiab tuaj yeem siv los sau ntau hom ntim sib txawv thiab cov duab. Lub tshuab no tuaj yeem sau cov thawv ntim nrog lub peev xwm ntawm 5ml txog 20 litres, ua rau nws tsim nyog rau ob qho tib si me me thiab loj ntim cov ntawv thov. Txawm hais tias koj tab tom sau cov fwj me me lossis cov thoob loj, lub tshuab no tuaj yeem ua haujlwm tau zoo thiab raug.



Kev ua haujlwm yooj yim

Lwm qhov txiaj ntsig tseem ceeb ntawm cov kua dej epoxy resin filling tshuab yog nws txoj haujlwm yooj yim. Lub tshuab no tau tsim los ua tus neeg siv khoom zoo thiab yooj yim rau kev khiav lag luam, txawm tias cov neeg ua haujlwm tshiab. Lub tshuab los nrog cov kev tswj tau yooj yim uas tso cai rau cov neeg ua haujlwm tswj xyuas qhov ntim nrawm, ntim, thiab lwm yam hloov pauv tau yooj yim. Qhov no ua kom yooj yim cov txheej txheem sau thiab ua kom zoo ib yam hauv txhua daim ntawv thov sau.



Tsawg kawg downtime

Lub tshuab ua kua nto epoxy resin filling tshuab yog tsim los ua haujlwm ntawm kev ua haujlwm siab tshaj plaws, kom ntseeg tau tias qis qis qis thiab ua haujlwm siab tshaj plaws. Lub tshuab muaj kev ntseeg siab heev thiab tuaj yeem ua haujlwm siab ntim cov ntawv thov yam tsis muaj kev cuam tshuam. Qhov no txhais tau hais tias koj tuaj yeem ua tiav qhov ntim loj ntawm cov ntawv xaj hauv lub sijhawm luv, uas tuaj yeem ua kom koj cov khoom tsim tau zoo.



Txhim kho cov khoom zoo

Lub tshuab ua kua epoxy resin filling tshuab ua kom zoo ib yam hauv txhua daim ntawv thov sau, kom ntseeg tau tias koj cov khoom ua tau raws li cov qauv xav tau. Nrog lub tshuab qhov tseeb thiab qhov tseeb, koj tuaj yeem xyuas kom meej tias txhua lub thawv ntim nrog cov kua epoxy resin kom raug, kom ntseeg tau zoo ib yam hauv txhua pawg ntawm cov khoom. Qhov no tuaj yeem pab koj tsim lub koob npe nrov rau cov khoom lag luam zoo, uas tuaj yeem ua rau muaj kev muag khoom ntau ntxiv thiab tau txais txiaj ntsig.

Txo cov nqi zog

Lub tshuab ua kua nto epoxy resin filling tshuab muab cov nqi txuag nyiaj los ntawm kev txo nqi zog. Lub tshuab no hloov cov txheej txheem sau phau ntawv, uas tuaj yeem siv sijhawm ntev thiab siv zog ntau. Nrog rau lub tshuab no, koj tuaj yeem ua tiav cov txheej txheem filling, txo qhov xav tau ntawm kev siv tes ua haujlwm thiab ua kom cov khoom tsim tau. Qhov no tuaj yeem ua rau muaj kev txuag nqi tseem ceeb, uas tuaj yeem rov ua lag luam rov qab rau hauv koj lub lag luam.



Hauv kev xaus, lub tshuab ua kua epoxy resin filling tshuab yog ib qho cuab yeej tseem ceeb rau txhua lub lag luam koom nrog hauv kev tsim cov khoom epoxy resin. Nrog nws cov precision, raug, ntau yam, yooj yim ntawm kev khiav hauj lwm, tsawg downtime, txhim kho cov khoom zoo, thiab txo nqi zog, lub tshuab no tuaj yeem hloov kho koj cov epoxy resin filling txheej txheem. Los ntawm kev nqis peev hauv cov kua dej epoxy resin filling tshuab, koj tuaj yeem xyuas kom meej tias koj lub lag luam nyob twj ywm ua ntej ntawm kev sib tw thaum xa cov khoom zoo rau koj cov neeg siv khoom.



Qeb	Kev teeb tsa	Ntau	Hom
Lub cev	Basic ncej-square steel yeeb nkab vuam qauv / ntawv hlau	1set ib	\
Peb-axis txav platform	XY axis: synchronous siv, Z axis: ntsia hlau	3set ib	TBI
	Stepper motor thiab tsav tsheb	3set ib	Leisai / Kev Tshawb Fawb thiab Tswj
Tswj System	PLC Programmable Controllers	1set ib	Panasonic Nyiv
	Software system	1set ib	GREWIN
	Muaj tib neeg-tshuab interface touchscreen	2 Pcs	Kunlun Tongtai
	Pneumatic Cheebtsam ( roj teeb valve / siab tswj valve / pneumatic duplex, thiab lwm yam)	Ob peb	AirTAC
	Cov khoom siv hluav taws xob (relays/contactors/power supply/leakage switches, etc.)	Ob peb	Chint lwm.
Glue muab ib feem	Stainless hlau A / B / C yas thoob	3set ib	\
	Kua theem tswb	2set ib	\
	Ib chim mix	1set ib	Han Chuang
	Ob-lub tog raj kheej plunger twj tso kua mis	2set ib	GREWIN
	Metering twj tso kua mis motors thiab tsav tsheb	2set ib	Leisai / Kev Tshawb Fawb thiab Tswj
	Dynamic dual kua valve	1set ib	GREWIN
	Cov cua kub tsis tu ncua	4set ib	Yudian
	High quality Teflon raj	2set ib	\
	Lub tshuab nqus tsev twj	1set ib	Flyover
	Clamp / kua nplaum taub hau	1set ib	GREWIN
