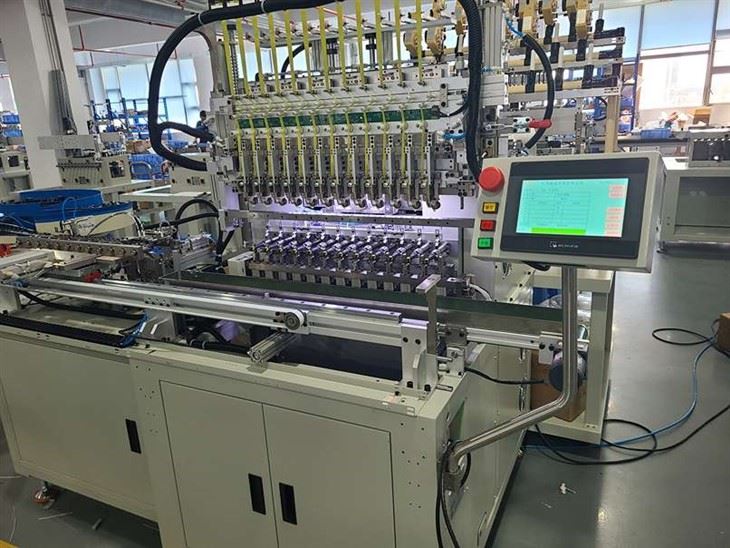

Tsis Siv Neeg Siab Ntau Hom Tshuab Winding

Qauv: GWD - s12-50.7
Spindles: 12
Lub laub siv hluav taws xob: 50.7mm
Qhov siab tshaj plaws Bobbin: 60 hli
Ntau tshaj RPM: 12000 rpm
Cov xov hlau loj: 0.1--S0.8 hli

Xa kev nug

Ces

Hauj lwm lawm

Cov cav tov cov ntsiab lus

Tsis muaj.	Zoo siab	Tsis
1	Lub spindles	12
2	Lub laub	50.7mm
3	Tshaj Bobbin	60mm
4	Ntau Tshaj RPM	12000 rpm
5	Hlau Loj	0.1----0.8 hli
6	Kev Tswj Xyuas System	Kev Tswj Winding
7	Kev qhia tshwj xeeb	AC220V 50Hz
8	Roj Roj Qhov Tshwj Xeeb	0.5--0.6
9	Tshuab Loj	22(L)1200(W)1600(H)
10	Hwjchim	3000W
11	Tshuab qhov hnyav	650kg
12	Lub tsev	Fixture cov ntxig

Ua haujlwm nta

Winding (enameled xaim, insulated xaim xaim, cov hlau pov tseg, txhob lo lo xov hlau, thiab lwm yam), rov qab muab cov kab xev, thim rov qab daim kab xev thiab lwm yam haujlwm. Ua tau zoo thiab yooj yim, feem ntau muaj ntawm cov castings rau qhov siab.

Taw qhia rau ntau - awchis machine

Zov - Axis Tshuab

Cov Qauv Txheej Txheem: Nws yog tsim ntawm 12 cov roj hmab cov txheej txheem thiab 12 fixtures. Ib transformer winding tuaj yeem ua tiav nyob rau ib lub sijhawm. Lub cajmeem yooj yim thiab yooj yim. Tsis tas yuav muaj kev debugging yuav tsum tau thaum xov bushing, thiab nws yog cia li muab tso cia.

Hloov kho cov teeb tsa: Kev pub mis cia, thim rov qab cov kab xev, rov qab cov kab zauv uas hla kev thiab cov roj hmab qis dua.

Nquag, ib qho winding siv 25 vib nas this. Lub winding lub sij hawm txawv nyob raws li cov txheej txheem winding.

Ib lub tshuab ntau lawm tuaj yeem txuas nrog ua cov kab ntau lawm. Raws li cov txheej txheem cov khoom lag luam, ntau cov koog xws li 2, 4, thiab lwm yam tuaj yeem ua ke thiab disassenemled ntawm will.flexible thiab ntau yam online tsim hom.

Muaj cov qauv: 12-axis 50.7 lub siab tawv, 12-axis 61.2 whenbase, 12-axis 72 lub log tsheb.

Parameter cov yam ntxwv ntawm ntau - awnis machine

Tshawb tau winding (ntau cov xov hlau tuaj yeem raug lub ntsej muag ib txhij), txoj cai}} Tus kav hlau, rov qab muab daim kab xev cia, rov qab ceeb toom lub luag haujlwm ceeb toom, thiab kab xev.
Qhov pib thiab xaus xaus yuav qhwv ib ncig ntawm cov haujlwm sib txawv.;
Nws tuaj yeem ua kom tau raws li cov cai ntawm cov kev sib txuas ntau thiab tsawg cov txheej txheem sib xyaw.
Cov qauv pub mis rau ob qho tib si tuab thiab nyias cov hlau yuav tsim nyog rau kev tsim cov thick thiab nyias siv ib txhij.
Cov xov hlau zoo tuaj yeem sib ntswg nrog lub tshuab stranding, uas yog tsim rau ob qho tib si ntsug thiab kab rov tav cov txheej txheem (yeem).

Thov saib daim duab. Qhov no yog daim duab ntawm cov discrating discs. Txhua qhov kev sib tw vibrating tuaj yeem tsim tau rau hauv cov kev qhia sib txawv thaum lub sijhawm tsim qauv thaum lub sijhawm tsim qauv, thiab nyob rau hauv txoj kev no, lub vibrating diss yuav raug txiav txim siab

Peb feem ntau txav mus rau fixture xaub rau tawm cov khoom, thiab thaum kawg nws yuav mus txog lub phaj vibrating
