Transformer Comprehensive Test Equipment

GWCT-100 tsis siv neeg transformer kuaj tshuab siv PLC tswj tshuab.



Nws tuaj yeem kho raws li qhov tshwj xeeb xav tau ntawm cov neeg siv khoom. Cov khoom siv ntau yam no muaj peev xwm ntawm kev tswj hwm tib lub sijhawmImpulse Winding Tester, LCR Meter, Precision Miniature Tam sim no Transformer Tester, DC Resistance Meter, thiabFiber Laser npav tshuabthiabUv Online Laser Marking Tshuab, ua kom raug thiab ua tau zoo ntawm kev sim ntau yam txheej txheem.



Peb cov thev naus laus zis thev naus laus zis ua kom ntseeg tau tias txhua qhov kev sim ua tiav raws li cov qauv kev lag luam, muab cov neeg siv nrog qhov tsis sib xws thiab kev ntseeg siab. Cov cuab yeej siv no tuaj yeem txiav txim siab, txuag lub sijhawm thiab nqi zog, thiab zam kev ua yuam kev los ntawm phau ntawv txiav txim.



Video:

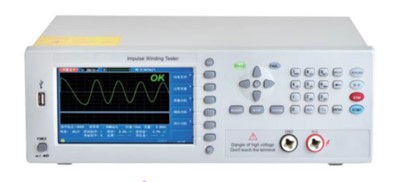

Impulse Winding tshuabTester



I. Specification:Main technical tsis muaj:

Qauv	GW-IT15-5KV	GW-IT15-3KV		GW-IT15-10kV
Output pulse voltage	100V ~ 5000V 10V kauj ruam 5% ± 10V	100V -300V10V kauj ruam 5% ± 10V		300V - 10000y kauj ruam 5% ± 10V
Kev ntsuas inductance	>10μH
Qhov siab tshaj plaws pulse zog	0.25J
Zaub Waveform zaub cheeb tsam Qhia cov ntsiab lus	800 × 480 dot matrix nraaj LCD 650 × 250 dot matrix Enlarged zaub, teeb tsis, qauv thiab kuaj waveforms, sib piv cov ntaub ntawv, ntaub ntawv, thiab lwm yam.
Waveform sampling	Tus nqi piv txwv: 100MSa/s-100kSa/s, tag nrho 10 kauj ruam Kev daws teeb meem: 8bits Sampling point: 6500 bytes
Standard waveform sampling	Nruam voj voog, ib lub voj voog, ib qho qauv (txog 32 zaug piv txwv nruab nrab muaj nuj nqi)
Input impedance	10MQ ua
Kev ntsuas ceev	Ntau tshaj 15 zaug / sec
Tus naj npawb ntawm pulses	Ntsuas mem tes		1 ~ 32 lub sijhawm programmable
	Degaussing mem tes		0~16 lub sij hawm programmable
Qhia waveform ntsuas	Voltage, Sijhawm, Zaus
Trigger hom	Internal Internal / Manual Manual μ AI (nrog ko taw tswj ko taw) / Sab nraud / Tsheb npav
Kev sib piv	Cheeb Tsam Loj Sib Piv, DiffZone Sib Piv Corona Sib Piv, PhaseDiff Sib Piv
Thaj tsam rov ua dua	±1%
Thaj Chaw Sib txawv Repeatability	±1%
Kev txiav txim tso zis	PASS, FAIL zaub, LED zaub, buzzer tswb
Tswb Volume xaiv	Ntev treble, Ntev bass, ib lub suab luv, ob lub suab nrov, tawm
Nco	Sab hauv: 200 pawg ntawm cov ntaub ntawv Sab nraud USB
Interface	HLOOV (Pib, Nres, PASS, NG, BusY, EOC.), RS232C IEEE488 (Option), USB Device, USBHOST
Ntim thiab hnyav	4 00mmx132mmx300mm, hnyav 8.0Kg.



II.Kev piav qhia luv luv



GW-IT15 series mem tes coil tester tshwj xeeb yog tsim los rau cov kev xav tau ntawm cov khoom siv hlau-qhov txhab, kev siv lub tshuab hluav taws xob ntau ntawm lub tshuab hluav taws xob me me (tsis tshua muaj lub zog ntsuas) thiab cov coil yuav tsum tau sim los ua ib qho kev sib txuas ntawm cov resonance. RLC, los ntawm attenuation ntawm lub oscillating waveforms, los ntawm siab li 100Msps (tuaj yeem kho rau 200Msps) thiab precision ntawm cov sampling ua thiab analytical cov tswv yim, yuav raug kuaj rau lub kauj los ntawm lub cev ntawm lub rwb thaiv tsev yog tsis zoo (tig-rau-tig luv-circuiting, luv luv Circuit Court ntawm txheej, rwb thaiv tsev kev ua tau zoo degradation, thiab lwm yam), thiaj li hais tias cov khoom manufacturers. thiab cov neeg siv tuaj yeem ua tau zoo dua rau kev tswj cov khoom zoo. luv luv Circuit Court ntawm lem, luv luv Circuit Court ntawm cov khaubncaws sab nraud povtseg, rwb thaiv tsev kev ua tau zoo degradation, thiab lwm yam), yog li ntawd cov manufacturers thiab cov neeg siv yuav ua tau zoo dua rau cov khoom zoo tswj.



GW-IT15 series ntsuas ntsuas ceev, ntsuas waveform repeatability, tuaj yeem siv dav hauv motors, zaus transformers, relays, switching fais fab mov transformers, demagnetization coils, thiab lwm yam los ntawm enameled hlau qhov txhab; GW-IT15 series tuaj yeem siv rau kev ntsuas qhov system kom ua tau zoo dua qhov kev xeem ua haujlwm.



III. Cov ntaub ntawv xaj xaj



●GW-IT15-3KV Pulse voltage tso zis: 100-3000V

●GW-IT15-5KV Pulse voltage tso zis: 100-5000V

●GW-IT15-10KV Pulse voltage tso zis: 100-10000V

●GW-IT15S-22 Channel Test, Pulse Voltage Output: 100-5000V

●GW-IT15S-44 Channel Test, Pulse Voltage Output: 100-5000V

●GW-IT15S-88 Channel xeem, mem tes voltage tso zis: 100-5000V

●GW-IT15S-XX10 channels-100 channels, pulse voltage output:100-10000V, tuaj yeem kho raws li cov neeg siv khoom xav tau.



IV.Advanced mem tes Kuaj Txoj Cai



Lub npe hu ua "kev kuaj mem tes ntawm cov hlau-qhov txhab" yog qhov tsis muaj kev puas tsuaj, kev kub ceev, qis zog hluav taws xob pulses siv rau qhov kev sim

daim ntawv los txheeb xyuas thiab sib piv cov waveforms ntawm qhov zoo thiab tsis zoo kuaj waveforms rau lub hom phiaj ntawm kev txiav txim siab GW-IT15 series ntawm lub vijtsam loj, tus qauv ntsuas ultra-siab, kev ua haujlwm siab ua haujlwm, kom cov neeg siv khoom xav paub qhov txawv ntawm qhov tsis xws. thiab cov khoom zoo. GW-IT15 series muaj lub vijtsam loj, tus lej ntsuas siab thiab kev ua haujlwm siab ua haujlwm.



V.Muaj hwj chim kab mob corona xeem muaj nuj nqi

tuaj yeem hloov kho mus txog 200Msps tus qauv ntsuas nrawm nrawm, raug rho tawm ntawm cov ntaub ntawv corona, thiab tau nruab nrog corona zaub ua haujlwm, corona zaub ntawm ib nrais muag, kev ua tau zoo ntawm cov khoom yuav tsum ua kom tsis txhob muaj teeb meem ua ntej lawv tshwm sim, txhim kho cov khoom zoo. .



VI.Unique destructive testing peev



Kev kuaj kev puas tsuaj yog hom kev sim uas pib los ntawm qhov pib voltage, siv cov kauj ruam voltage raws li cov kauj ruam voltage, xaus nrog qhov kev txiav tawm voltage thiab sib txuas nrog cov sib piv rau kev sib piv, uas yog siv los txiav txim qhov txwv voltage tiv thaiv tus nqi ntawm cov khoom kuaj, uas tuaj yeem pab cov neeg siv khoom paub txog qhov hluav taws xob tiv thaiv tus nqi ntawm lawv tus kheej cov khoom thiab ua qhov siv rau kev teeb tsa qhov ntsuas hluav taws xob.



VII.Kawm dual-channel, quad-channel kuaj muaj peev xwm



GW-IT15S-2 dual-channel, GW-IT15S-4 plaub-channel tuaj yeem ntsib cov neeg siv khoom ntawm Y-hom winding (peb-theem plaub-xaim), peb-theem peb-xaim winding xeem cov kev xav tau, lub cev muaj zog winding xeem ib zaug, kom tsis txhob muaj ntau yam kev hloov pauv qhov teeb meem, kev sim ceev ceev, ua haujlwm tau zoo thiab tus nqi zoo, tau qhuas los ntawm cov neeg siv khoom.



Nws kuj tseem tuaj yeem nruab nrog lub npov sab nraud ntau lub tshuab luam ntawv, xws li ib qho 8-channel scanner box.



VIII.NTA:



●65k xim 7-inch TFT 800 * 480 HD zaub, Suav thiab Askiv yeem ua haujlwm interface

●100Msps waveform sampling tus nqi, 6500bytes nco qhov tob (200Msps tuaj yeem hloov kho).

● Kev sim siab ceev, mus txog 15 zaug / sec.

●Four waveform kev sib piv txoj kev txiav txim: cheeb tsam, cheeb tsam sib txawv, corona thiab theem sib txawv

●Txoj kev ruaj ntseg zoo heev, kev sim rov ua dua, kom ntseeg tau tias kev ruaj ntseg ntawm qhov kev sim ● Muaj zog corona tsom xam thiab rho tawm muaj nuj nqi, khawb tawm cov teeb meem rwb thaiv tsev ntawm cov khoom.

● Tsis siv neeg txuag ntawm cov ntsuas ntsuas thiab lub hwj chim ntawm cov ntaub ntawv thauj khoom muaj nuj nqi.

●Waveform ntsug zoom, kab rov tav zoom thiab txav ua haujlwm, yooj yim rau kev soj ntsuam cov ntsiab lus

●Sample nruab nrab muaj nuj nqi, mus txog 32 zaug ntawm tus qauv waveform nruab nrab ua

● Tsis siv neeg hom kev yuav khoom, cia li xaiv tus qauv tsim nyog

● Kev kuaj kev puas tsuaj rau koj xaiv qhov ntsuas qhov ntsuas qhov tsim nyog

●Demagnetization pulse daim ntawv thov los xyuas kom meej qhov kev xeem waveforms Firmware version hloov tshiab ntawm USB HOST.

● Ko taw-tswj interface rau kev ntsuas ceev thiab yooj yim.



Kev sib txuas dav dav rau Handler, RS232C, USB Device, USB Host, thiab GPIB (optional).Muaj txog li 4 txoj kev kuaj, tuaj yeem kuaj peb-theem lub cev muaj zog delta thiab lub hnub qub txuas, ib-theem lub cev muaj zog thiab lwm yam winding, lub ntsiab thiab vice winding, main and vice + main and vice winding, kom tau raws li tag nrho cov kev ntsuas lub cev muaj zog tig-rau-tig, kuj tuaj yeem muab 4 windings, thiab tseem tuaj yeem muab 4 winding testing.Nws kuj tseem tuaj yeem muab kev kuaj xyuas kev ua haujlwm ntawm 4 windings thiab winding sib piv kev xeem ua haujlwm.



IX.Main cov ntaub ntawv ntxiv





LCR Meter



Specification:Main technical tsis muaj:

tus qauv naj npawb		GW-IT16B	GW-IT17C
Xeem zaus		50Hz-200kHz 37 zaus cov ntsiab lus	50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz, tag nrho 10 ntsiab lus
xeem parameter		CL,X,B,R,G,D,Q,ESR,Rp. θ .|Z|,|YI ,P	C,LX,BR,G,D,Q,ESR,DCR,TURN.Rp,θ ,|ZI,IYI,P
qib xeem		10mV-2Vrms
Qhov tseeb tiag		0.05% cov lus tseeb yeej yeej
kuaj ceev		Ceev: 50 zaug / sec, nruab nrab 20 zaug / sec, qeeb 6 zaug / sec (frequencies saum 1kHz)
Zaub ntau yam	| ZI, R, X	0.01MΩ~99.9999MΩ
	YIG, B	0.00001μS~99.9999S
	C	0.00001pF-9.99999F
	D	0.00001-9.99999
	DCR	0.01MΩ~99.9999MΩ
	L	0.00001μH-99999.9H
	Q	0.01-99999.9
	θ (RAD)	3.14159~3.14159
	θ (DEG)	-179.999 degree ~ 179.999 degree
	△%	-99.999%-99.999%
	Hloov-Ratio			1:0.01-100:1
Teeb liab Source Output Impedance		30Ω ,100Ω
Internal DC bias voltage		0V,2V		0V,1.5V,2V
Txoj kev sib tw		Tsis siv neeg, Tuav
Trigger hom		Internal, Phau ntawv, Auto, Sab nraud, Bus
Calibration Function		Qhib / luv, Tag Nrho Zaus Zero, Spot Frequency Zero
Sib npaug Circuit Court		Series, Parallel
Muab piv		10- position selector,,BINO-BIN9,NG,AUX
		PASS, HI, LOW (PASS / FAIL LED zaub)
Interfaces		RS232C, Usb Host, USB Device, Handler, GPIB (Option)
Kub thiab av noo		0 degree ~ 40 degree, txheeb ze Humidity Tsawg dua lossis sib npaug li 75%.
Kev xav tau lub zog		Voltage: 100-120 Vac los yog 198-242 Vac
		Zaus: 46-64 Hz, lub zog ntau dua 50 VA
Volume (WxHxD)		310mmx115mmx315mm
Luj (Net)		4,5 Kg



NTA:

1.Highly piv nrog thoob ntiaj teb hom LCR choj cov ntaub ntawv xeem (Keysight, WK)

2.Keyboard xauv muaj nuj nqi, lub zog-down cov ntaub ntawv tiv thaiv muaj nuj nqi

3.Lus scanning muaj nuj nqi, qhib Circuit Court, luv Circuit Court, load kho muaj nuj nqi 4.Simplified Suav thiab lus Askiv khiav hauj lwm hom

5.Test cov ntaub ntawv, sim tej yam kev mob txuag (USB flash disk los yog sab hauv)

6.Test voltage, tam sim no tsis siv neeg tshuav nyiaj li cas hloov muaj nuj nqi (ALC)

7.50 cov ntaub ntawv xeem hauv lub cuab yeej thiab 500 cov ntaub ntawv xeem ntawm USB flash disk tuaj yeem rov qab tau txhua lub sijhawm

8.U disk tuaj yeem txhawb cov hom ntawv FAT16, FAT32 cov ntaub ntawv



Cov lus luv luv



GW-IT16B/GW-IT17C digital LCR choj yog lub cim tshiab ntawm impedance tester nrog xim TFT zaub screen, nws qhov tseeb qhov tseeb ntawm 0.05%,

50Hz ~ 200kHz zaus ntau tuaj yeem siv los ua kom tau raws li cov khoom xa tuaj, tshuaj xyuas khoom xa tuaj, los muab cov khoom lag luam zoo.



Ordering Information



●GW-IT16B:50Hz-200KHz LCR Digital Choj

●GW-IT17C: 50Hz-100KHz LCR cov choj nrog cov lej suav ua haujlwm.



Precision Miniature tam sim no transformer tester(tam sim no peb-ib daim teeb)



I.Cov ntsiab lus:



Cov cuab yeej siv no yog siv los ntsuas qhov yuam kev ntawm cov khoom me me tam sim no transformers. Nws txais txoj cai ntawm kev sib piv. Tag nrho cov txheej txheem ntsuas ntsuas suav nrog hluav taws xob ascender, cov qauv me me tam sim no transformer, me me transformer calibrator thiab txhawb zog qaum, txuas cable thiab lwm yam. Integral zoo, yooj yim rau kev khiav lag luam. Cov cuab yeej yog tsim los nrog kev siv rau cov me me tam sim no transformer JB/T {{0}}} tus qauv, uas ua tau raws li qhov xav tau ntawm kev ntsuas qhov yuam kev ntawm cov me me tam sim no transformers ntawm 0.02 qib thiab qib hauv qab no.



Tus tshiab calibrator yogsuperior rau cov yam ntxwv ntawm cov khoom zoo sib xws:



1. Kev xeem teb ceev tau zoo heev. Nyob rau tib lub sij hawm nce qhov ceev thiab qeeb qeeb hloov kev ua haujlwm, kom ua tau raws li qhov sib txawv ntawm qhov kev ntsuas ceev ntawm cov neeg siv khoom.

2. Kov npo zaub thiab tswj, kev ua haujlwm yooj yim thiab intuitive zaub.

3. Ua kom lub tswb teeb tsa muaj nuj nqi hloov, qhib thiab nkag rau hauv los teeb tsa lawv tus kheej cov ntaub ntawv sau cov feem pua ​​​​ntawm cov ntsiab lus, qhov sib txawv ntawm qhov sib txawv thiab tshaj qhov sib txawv ntawm lub tswb nrov. Raws li cov txheej txheem qhov tseeb, qhov yuam kev yuav raug txiav txim siab seb nws puas tsim nyog lossis tsis, thiab xim liab yuav tshwm sim thaum nws dhau qhov kev ua siab ntev thiab nrog lub tswb nrov.

4. Nyob rau tib lub sijhawm kom lub tswb nrov nrov thiab hloov, raws li tus neeg siv qhov chaw ib puag ncig qhib lub tswb nrov nrov, thaum kho qhov loj me. Ntsib qhov chaw ib puag ncig ntawm cov neeg siv nrov nrov.

5. Ua kom muaj kev sau tsis siv neeg, teeb tsa qhov feem pua ​​​​ntawm koj tus kheej, nkag mus rau hauv cov ntaub ntawv sau interface, txuag cov ntaub ntawv tom qab ua tau raws li qhov yuav tsum tau ua, thiab cov ntaub ntawv tuaj yeem xa tawm mus rau Excel daim ntawv nrog USB flash disk.

6. Ntxiv kev tswj cov zis muaj nuj nqi, raws li qhov teeb tsa los txiav txim seb nws puas tsim nyog lossis tsis tau thiab tom qab ntawd muab cov teeb liab sib xws, nws tuaj yeem txuas nrog lub platform tsis siv neeg kom paub txog kev tswj tsis siv neeg.

7. 485 kev sib txuas lus tuaj yeem txuas nrog lub computer lossis lub console kom paub txog kev tswj tsis siv neeg.





II.Main technical ntsuas



1. Primary rated tam sim no:

a: 100, 75, 30, 25, 20, 15, 10, 6, 5, 3, 2.5, 1.5, 1, 0.6, 0.3



2. Secondary rated tam sim no:

60, 50, 40, 30, 25, 20, 50/3, 15, 10, 7.5, 20/3, 6, 5, 4, 10/3, 3, 2.5, 2, 1.5, 1



3. Ntau hom qauv tam sim no transformer raug: 0.005 qib.



4. Kev ntsuas kab raug: tso saib tus nqi yuam kev: Tsawg dua lossis sib npaug ± 2% theem yuam kev: Tsawg dua lossis sib npaug rau ± 2% radian



5. Fais fab mov: siab tshaj plaws tso zis hwj chim: 300VA, nrog fine-tuning.



6. load tsis kam: 0Ω, 5Ω, 10Ω, 15Ω, 20Ω, 25Ω, 30Ω, 40Ω, 50Ω, 60Ω, 70Ω, 75Ω, 8010 , 200Ω, 250Ω, 500Ω, 1KΩ, 1.5KΩ, 2KΩ, sab nraud.



7. Cov xwm txheej ntawm kev siv:

(1) Fais fab mov: hluav taws xob 220V, 50Hz thiab 60Hz

(2) Kev siv ib puag ncig: kub 10------40 degree ; Humidity Tsawg dua los yog sib npaug li 80%



III.Cov lus piav qhia txog tus qauv



Qhov ntsuas no yog ntsug peb lub thawv qauv.

Lub thawv qis dua yog lub zog, piv txwv li lub thawv fais fab. Cov zis tam sim no muaj 1A, 5A thiab 100A zog. Raws li lub ntsiab tam sim no ntawm lub

ntsuas transformer xaiv cov zis iav ntawm lub koob. Nws kuj tau nruab nrog ntxhib thiab nplua regulator rau kev hloov kho tam sim no.



Nws yog txwv tsis pub siv cov zog supply box kom tshaj tus tam sim no txwv, txwv tsis pub nws yuav ua rau mus tas li kev puas tsuaj rau lub cuab yeej!



Micro standard tam sim no transformer. Lub vaj huam sib luag muaj thawj lub davhlau ya nyob twg, theem nrab tam sim no hloov pauv hloov; lub Upper box rau lub

Kev ntsuas qhov yuam kev kab kem: me me transformer calibrator. Nyob rau hauv lub vaj huam sib luag muaj ib tug kov screen, teem lub functionality thiab tso saib cov ntaub ntawv; ntsuas transformer theem nrab terminals K1, K2; qhov ntsuas transformer load (tsis kam) hloov pauv, sab nraud load terminals. Thaum lub load thib ob ntawm lub ntsuas transformer yog ib qho kev thauj khoom uas tsis yog cov qauv tsim, lub davhlau ya nyob twg sab nraud tuaj yeem txuas nrog tus nqi thauj khoom uas xav tau. Hauv qhov no, lub pob qhov rooj thauj khoom yuav tsum tau muab tso rau hauv qhov chaw sab nraud.



Cov kev sib txuas ntawm sab xub ntiag thiab sab nraub qaum ntawm peb lub thawv yog qhia hauv daim duab hauv qab no.

Duab ib daim duab b



IV. Kev siv



1. Raws li daim duab saum toj no tom qab txuas cov kab cable,

Raws li qhov ntsuas qhov ntsuas qhov ntsuas, xaiv qhov sib xws tus qauv transformer ntau yam.

2. lub thawv qis regulator muab tso rau hauv xoom txoj hauj lwm, tig lub hwj chim. Kho tus regulator rau tus nqi tam sim no, nyeem f, δ yuam kev.

3. txoj kev tshwj xeeb ntawm kev ntsuas tus naj npawb ntawm cov lem, thawj qhov tam sim no qhia hauv amperes, qhov thib ob tam sim no tau qhia hauv

milliamps. Ua ntej ntawm tag nrho cov, raws li qhov loj ntawm lub hauv paus tam sim no ntawm kev ntsuas transformer nyob rau hauv tus qauv xaiv ntawm cov sib txuas xov jack, thiab ces cov mis: " thawj rated tam sim no * thawj lem * 1000 / thib ob lem" kom tau qhov luaj li cas. tso zis theem nrab tam sim no, theem nrab hloov mus rau qhov sib thooj iav suav.



Piv txwv li: tam sim no transformer thawj tam sim no ntawm 3A, thawj lem rau 1 tig, theem nrab lem rau 50 lem, ces tus thawj jack yuav tsum tau xaiv 3A iav, xam theem nrab hloov iav 3 * 1 * 1000 / 50=60mA. Secondary hloov yuav tsum tau hu mus rau 60mA iav.Lwm yam me me transformertig ntsuas thiab lwm yam. Raws li cov txheej txheem saum toj no, peb tuaj yeem ntsuas ntau hom kev hloov pauv ntawm qhov hloov pauv, qhov tseem ceeb mus kom zexam cov lem ntawm kev sib raug zoo, yog thawj 40A1N

tam sim no transformer, thib ob lem rau 1000N, peb txiav txim siab hais tias lub thib ob tam sim no yuav tsum yog 40mA, tab sis tus txheej txheem thawj wiring jacks tsis muaj 40A, peb yuav commuted mus rau lwm yam coj iav los ntsuas, tsuas yog yuav tsum tau txaus siab rau cov kev sib raug zoo ntawm lub tus naj npawb ntawm cov lem tuaj yeem siv tau. Yuav ua tau, piv txwv li, nrog thawj 30A (saib qhov siab tshaj plaws), theem nrab 30 mAto ntsuas, tab sis kuj nrog thawj 20A, theem nrab 20 mAto ntsuas, tab sis xyuam xim rau qhov kev khiav hauj lwm tam sim no.



V.Cov kev ceev faj



1. nkag mus rau qhov ntsuas ntsuas, yuav tsum tau txuas nrog qhov thib ob ua ntej, thiab tom qab ntawd txuas nrog lub hauv paus. Thaum tshem tawm lub transformer, thawj yuav tsum tau muab tshem tawm ua ntej, ces lub thib ob. Thiab xyuam xim rau seb qhov polarity puas yog los yog tsis.

2. Thaum ntsuas qhov yuam kev, cov xaim hauv av ntawm lub cuab yeej yuav tsum tau ua kom ruaj khov nyob rau hauv qis qis ntawm lub vaj huam sib luag tom qab ntawm lub ntsuas, saib daim duab b.



Nco tseg: Thov ua tib zoo saib xyuas cov khoom siv hluav taws xob, L,N (hluav taws xob hlau, xoom xaim), yuav tsum tsis txuas nrog tus rov qab.



VI. Kov npo kev khiav hauj lwm cov lus qhia

1, kov npo khau raj 3 vib nas this tau nkag mus rau lub ntsiab interface, raws li daim duab 1.

Daim duab 1

Thaum kev sib txuas lus zoo li qub, nws qhia cov ntaub ntawv ntawm lub sijhawm tiag tiag ntawm qhov feem pua ​​​​meter, qhov sib txawv qhov sib txawv thiab lub kaum sab xis sib txawv. Nyob rau tib lub sijhawm, nws qhia txog kev xaim hluav taws xob ntawm lub tshuab hluav taws xob, yog tias lub tshuab hloov pauv ib txwm siv, nws qhia "ua haujlwm li qub"; Yog hais tias lub transformer tsis raug xaim, nws yuav ua rau qhov qhib Circuit Court thib ob / polarity yuam kev / ntsuas ntau qhov yuam kev.



Nyem "Ntawv qhia zaub mov" thiab "Kev piav qhia" txhawm rau nkag mus rau qhov sib thooj interface;

"Tone on/off" khawm hloov rau / tawm;

"Unit of Angular Difference" khawm hloov chav tsev ntawm qhov sib txawv ntawm qhov sib txawv kom pom hauv feeb lossis %;

"Digit +" khawm nce tus lej tso saib los ntawm 1 tus lej; "Digit -" khawm kom txo tus lej tso saib los ntawm 1 tus lej;

"Speed ​​+" ntsuas cov ntaub ntawv stabilization lub sij hawm yog 0. 1S, ntev nias 2S hloov; 'Speed ​​-' ntsuas cov ntaub ntawv stabilization lub sij hawm yog 0.5S, ntev nias 2S hloov;



2, Menu

Raws li hauv daim duab 2, nyem "Ntawv qhia zaub mov" kom nkag mus rau qhov sib thooj interface.

Daim duab 2

3, Tswb Tswb

Raws li hauv daim duab 3, koj tuaj yeem teeb tsa qhov tseeb ntawm qhov hloov pauv, nrog rau qhov feem pua ​​​​ntawm cov ntsuas ntsuas qhov ntsuas, thiab cov kev txwv sab saud thiab qis ntawm cov angular thiab cov kev sib txawv tshwj xeeb.



Daim duab 3 Daim duab 4

Thaum koj siv nws thawj zaug, thawj zaug tig rau ntawm qhov hloov ntawm lub tswb muaj nuj nqi, lub sijhawm no, qhov siab thiab qis qis ntawm feem pua, qhov sib txawv ntawm qhov sib txawv thiab qhov sib txawv yog txhua yam 0. Nyem "Administrator Login" kom nkag mus rau qhov chaw teeb tsa thiab nkag rau hauv raws li tus neeg saib xyuas (password 1), tom qab ntawd nias lub pob "Restore Initial Values" txhawm rau teeb tsa lub siab thiab qis qis thiab thawj qhov tseem ceeb ntawm feem pua, lub kaum sib txawv thiab qhov sib piv txawv. Thawj tus nqi. Raws li qhov tseeb ntawm lub transformer, nias lub khawm qhov raug nyob rau hauv qab ntawm qhov screen los tso saib lub sab sauv thiab qis txwv qhov tseem ceeb ntawm qhov sib txawv thiab angular sib txawv nyob rau hauv qhov tseeb.Thaum qhov feem pua ​​​​ntawm cov kev ntsuam xyuas yuav tsum tau hloov, nyem rau ntawm qhov Qhov feem pua ​​​​ntawm txoj hauj lwm nkag mus rau qhov feem pua ​​​​meter teeb tsa interface, nyem rau ntawm qhov ntsuas qhov taw qhia kom ncaj qha nkag mus rau qhov ntsuas qhov xav tau, thiab tib lub sijhawm, teeb tsa qhov siab thiab qis qis ntawm qhov ntsuas. point, raws li hauv daim duab IV. Yog tias qhov kev txwv sab saud thiab qis ntawm qhov sib txawv ntawm qhov sib txawv thiab qhov txawv tshwj xeeb yuav tsum tau hloov kho, nyem rau ntawm txoj haujlwm sib raug los hloov kho, thiab thaum kawg nias lub pob "Confirm Modification". Rov qab mus rau qhov kev ntsuam xyuas tseem ceeb, kho tus tswj hwm, qhov sib txawv ntawm qhov sib txawv thiab lub kaum sab xis tus nqi sib txawv tshaj li qhov teeb meem yuam kev, tom qab ntawd cov ntaub ntawv tso saib liab tswb, tib lub sij hawm, lub buzzer emits lub tswb nrov "Tone Hloov" tuaj yeem tig. tawm ntawm lub tswb nrov. Lub caij no, lub suab nrov nrov tuaj yeem hloov kho los ntawm lub ntim pob qhov rooj ntawm lub vaj huam sib luag pem hauv ntej.



Nyem "Tam sim no" khawm, tam sim no CT ib feem ntawm lub thawv liab prompts, nyem "Voltage" khawm, voltage PT ib feem ntawm lub thawv liab prompts.



4, Ntsuas taw tes teeb tsa

Raws li pom hauv daim duab 5, teeb tsa lub tswb ceeb toom thiab cov ntaub ntawv khaws tseg ntawm qhov sib txawv ntawm qhov ntsuas qhov taw qhia, xaiv cov lus ceeb toom ntsuab, nyem rau ntawm "cov ntaub ntawv tau txais" nkag mus rau qhov tsis siv neeg tau txais thiab khaws cia interface, raws li qhia hauv daim duab 6, los ntawm {{ 2}} maj mam kho cov regulator mus rau qhov ntsuas qhov siab tshaj plaws, sab laug ntawm cov ntaub ntawv tau txais kev khaws cia, yog tias dhau ntawm qhov kev teeb tsa ntawm lub teeb liab thiab lub tswb nrov, kev xaiv ntawm tag nrho cov ntsuas ntsuas tau sau! Tom qab ua tiav, qhov feem pua ​​​​meter siab tshaj qhov ntsuas qhov siab tshaj plaws, ua kom cov ntaub ntawv khaws tseg tau zoo, tus lej qauv tau txais kev ntxiv 1, tus lej yuav tsum tau rov suav dua txhua zaus lub hwj chim qhib, thiab tus lej tuaj yeem tsim los ntawm koj tus kheej. raws li koj xav tau. Yog tias muaj qhov ntsuas qhov ntsuas tsis tau, nws yuav ua rau cov ntaub ntawv sau tsis tiav thiab rov ntsuas dua.



Tom qab cov ntaub ntawv tau txais kev cawmdim tiav, nws tuaj yeem raug nug los ntawm keeb kwm, thiab nws yuav tsum tau xa tawm ncaj qha los ntawm txhaj cov ntaub ntawv xa tawm mus rau U disk, xws li hauv daim duab 7.



Daim duab 5 Daim duab 6 Daim duab 7

5,485 Kev

Raws li hauv daim duab 8, koj tuaj yeem hloov kho qhov chaw nyob 485, "OK" khawm kom txuag thiab rov qab mus rau '"485 Chaw" interface.

Daim duab 8

6, Calibration



Nkag mus rau calibration interface, xws li daim duab 9, qhov "secondary range"hloov mus rau "calibration" cov ntaub ntawv, K1, K2 terminals raug txiav, thawj kab hauv series nrog tus qauv ammeter, saib xyuas tus nqi tam sim no; kho lub pob qhov rooj ascender, kom tus qauv ammeter qhia 5A, lub sijhawm no!Percentage meter, ratio txawv, angle txawv yuav tsum tau tso tawm 100%, -1.000%, 0.

Daim duab 9

Nias "Txuag" qhov tseem ceeb kom txuag tau cov ntaub ntawv calibration, yog tias koj tsis tas yuav txuag cov ntaub ntawv calibration ncaj qha nias "Rov qab".



VII.485 Serial Kev sib txuas lus



(I), serial chaw nres nkoj tso zis hom ntawv

Baud tus nqi=9600, 8 cov ntaub ntawv me ntsis, 1 nres me ntsis, tsis muaj qhov sib npaug.



(II), COM1 chaw nres nkoj 485 kev sib txuas lus raws tu qauv

Execute Modbus raws tu qauv, lub khoos phis tawj sab saud yog tus tswv, nyeem thiab sau ntawv rau lub vijtsam kov.

1, Xa code hom: chaw nres tsheb xov tooj + function code + pib chaw nyob + naj npawb ntawm registers + CRC checksum Tau txais code hom: chaw nres tsheb tooj + function code + naj npawb ntawm bytes + sau npe tus nqi + CRC checksum



Chaw nres tsheb tooj: {{0}}X01 Function code: 0X03

Chaw nyob pib: 100 (2 bytes)

Tus naj npawb ntawm cov npe: 8 (2 bytes)

Tus lej bytes: 16 (1 byte)



Sau npe tus nqi: Feem pua ​​​​meter (4 bytes) + Qhov sib txawv (4 bytes) + Lub kaum sib txawv (4 bytes) + Kev ua haujlwm (2 bytes) + Kev sib txuas lus ib txwm cim (2 bytes), qhov twg cov ntaub ntawv siab byte nyob rau pem hauv ntej thiab low byte yog nyob tom qab.



CRC checksum: qis 8 ntsis + siab 8 ntsis

Lus Cim: ua hauj lwm lub xeev: qhia los ntawm {{0}}, 16-bit positive integer 0: ua hauj lwm ib txwm;



1: tawm ntawm qhov siv tau, tsis txhob nce qhov ntsuas tam sim no;

2: transformer ntau yam yuam kev;

3: Transformer polarity yuam kev;

4: Transformer polarity yuam kev, ntau yam yuam kev;

5: theem nrab qhib Circuit Court ntawm ntsuas transformer;

6: ntsuas tsis ua haujlwm, tsis tuaj yeem ua haujlwm;

7: kev ua yuam kev loj, tsis txhob nce qhov ntsuas tam sim no; 8: thawj tam sim no tshaj cov khoom siv txwv;

9: yuam kev tsim nyog;

10: yuam kev dhau qhov kev teeb tsa ntau yam.



2, Lub khoos phis tawj sab saud nyeem tus nqi ntsuas tam sim no.



Sau npe chaw nyob 100 [4 bytes]: feem pua ​​​​ nplai (unit %, 32-ntsis ntab taw tes tus lej)

Sau npe chaw nyob 102 [4 bytes]: piv tus nqi sib txawv (unit %, 32-ntsis ntab taw tes tus lej)

Sau npe chaw nyob 104 [4 bytes]: angular sib txawv tus nqi (unit %, 32-ntsis ntab taw tes tus lej)

Sau npe chaw nyob 106 [2 bytes]: kev khiav hauj lwm xwm txheej (16-bit positive integer)

Sau npe chaw nyob 107 [2 bytes]: kev sib txuas lus ib txwm cim, voj voog +1, ntau yam 1-9999, (16-ntsis zoo tus lej)



3, Tus naj npawb chaw nres tsheb hauv zos: raws li qhov yuav tsum tau muaj ntawm lub tshuab computer, kev hloov pauv hloov pauv hloov pauv, ntau yam 1-240, tus naj npawb chaw nres tsheb yog 1.



(III) COM2 chaw nres nkoj 485 kev sib txuas lus raws tu qauv



Qhov ntsuas xa cov ntaub ntawv los ntawm qhov chaw nres nkoj serial tom qab txhua qhov ntsuas. Nws txhawb Modbus raws tu qauv lossis qhov chaw nres nkoj dawb, thiab qhov chaw nres nkoj dawb cuam tshuam cov ntaub ntawv thib 8 txog 23 rau kev tso saib tom qab tau txais.



1. Kev sib txuas lus code hom: chaw nres tsheb xov tooj + function code + pib chaw nyob + naj npawb ntawm registers + naj npawb ntawm bytes + sau npe tus nqi + CRC checksum



Chaw nres tsheb naj npawb: 0X01

Function code: 0X10

Pib chaw nyob: 100 (2 bytes)

Tus lej sau npe: 8 (2 bytes) Tus lej ntawm bytes: 16 (1 byte)



Sau npe tus nqi: kev ua haujlwm (2 bytes) + feem pua ​​​​meter (4 bytes) + qhov sib txawv (4 bytes) + lub kaum sib txawv (4 bytes) + kev sib txuas lus ib txwm cim (2 bytes), qhov siab ntawm cov ntaub ntawv nyob rau pem hauv ntej thiab qhov tsawg byte yog nyob tom qab.



CRC checksum: qis 8 ntsis + siab 8 ntsis



Lus Cim: Kev ntsuas qhov xwm txheej: qhia los ntawm 0-10, 16-bit positive integer



0: ua hauj lwm ib txwm;



1: tawm ntawm qhov siv tau, tsis txhob nce qhov ntsuas tam sim no;



2: Tsis zoo transformer ntau yam;



3: Transformer polarity yuam kev;



4: Transformer polarity yuam kev, ntau yam yuam kev;



5: theem nrab qhib Circuit Court ntawm ntsuas transformer;



6: ntsuas tsis ua haujlwm, tsis tuaj yeem ua haujlwm;



7: Kev ua yuam kev loj heev, tsis txhob nce qhov ntsuas tam sim no;



8: Lub hauv paus tam sim no tshaj qhov txwv cov khoom siv;



9: yuam kev tsim nyog;



10: qhov yuam kev tshaj qhov chaw teeb tsa.



Qhov feem pua ​​​​meter: chav tsev %, 32-ntsis ntab taw tes tus lej;



Cov lus sib txawv ntawm qhov sib txawv: chav tsev %, 32-ntsis ntab taw tes tus lej;



Angular sib txawv ntsuas: chav tsev %, 32-ntsis ntab taw tes tus lej;



Kev sib txuas lus ib txwm cim: voj voog +1, cov ntaub ntawv ntau yam 1-9999, (16-ntsis zoo tus lej)



2, Piv txwv ntawm kev sib txuas lus cov ntaub ntawv



01 10 00 64 00 08 10 00 00 3F 7F BE 77 BD FC B9 24 3F 2D CC 64 00 09 91 C8



Qhia: kev khiav hauj lwm raws li txoj cai {{0}}} ua hauj lwm ib txwm, feem pua ​​​​meter 0.999%, qhov sib txawv qhov ntsuas ntsuas -0.1234%, lub kaum ntse ntse qhov sib txawv 0.6789%, kev sib txuas lus ib txwm cim 9.



3, Cov ntsiab lus sib xws rau Modbus tus qauv raws tu qauv chaw nyob.



Sau npe chaw nyob 100 [2 bytes]: kev khiav hauj lwm xwm txheej (16-bit positive integer)

Sau npe chaw nyob 101-102 [4 bytes]: Feem pua ​​​​cov lus (unit %, 32-bit floating point tooj)

Sau npe chaw nyob 103-104 [4 bytes]: piv tus nqi sib txawv (unit %, 32-ntsis ntab taw tes tus lej)

Sau npe chaw nyob 105-106 [4 bytes]: angular sib txawv tus nqi (unit %, 32-bit floating point tooj)

Sau npe chaw nyob 107 [2 bytes]: kev sib txuas lus ib txwm chij, voj voog +1, ntau yam 1-9999 (16-ntsis zoo tus lej)



(iv) Pin Lus txhais







VIII.Control output



Muaj kev tswj cov zis tawm ntawm lub vaj huam sib luag tom qab, raws li lub tswb teeb tsa ntau yam los nyeem seb qhov kev ua yuam kev puas tsim nyog, cov xwm txheej ua haujlwm prompts "yuam kev tsim nyog" uas yog, tsim nyog cov zis terminals muaj cov teeb liab tso tawm, cov txheej txheem ua haujlwm prompts " yuam kev tshaj qhov teeb tsa ntau yam "uas yog, tsis tsim nyog sib txuas cov terminals muaj cov teeb liab tso tawm. Tso zis.



IX.Attachment

1, Fais fab qaum: ob peb-core;

2, tus qauv transformer thiab calibrator txuas kab: 1;

3, thawj kab txuas:

16mm2*{2}}.2m ib kab lus;

16mm2 * 0.8m ob (socket);

16mm2 * 0.8m ob strips ( phom taub hau nrog 2 khej clips);

4, Cov kab txuas txuas txuas ntxiv: 1 kab thaiv kab (nrog 2 crocodile clips);

5, Hauv av xaim: 2.5mm2 * 0.4m ob, 2.5mm * 0.8m ob

6, Kev sib txuas lus: 1 daim;

7, ib manual.



DC Kev tiv thaiv Meter



Cov lus piav qhia luv luv:



GW-RM13 series DC resistance tester yog xim TFT zaub screen, qhov tseeb ntawm 0.05%, tuaj yeem siv rau coil, inductor, transformer, suab coil, conductive zaj duab xis (daim ntaub), cua sov tub ntxhais, hu rau kuj, fuse, relay, luam ntawv board hlau tsis kam, vuam tsis kam, connector kuj, hlau nrhiav, thiab lwm yam., kuj yuav siv tau rau automated xeem khoom





Performance feature:

1.

2. Txawm hais tias tsim nyog LED lub teeb qhia, sib txawv suab prompts, txawv xim prompts

3. Kuaj qhov kawg hu rau kev kuaj xyuas muaj nuj nqi (GW-RM13) thiab HANDLER tso zis teeb liab

4. Txuag qhov kev hloov kho, 50 hauv qhov ntsuas, 500 cov ntaub ntawv xeem ntawm U disk

5. Keyboard xauv muaj nuj nqi, kaw cia cia cov kev xeem, tsis tas yuav rov pib dua lwm zaus

6. Saj zawg zog interface muaj nuj nqi, raws li qhov yuav tsum tau ua kom tiav cov ntaub ntawv kaw, txuag, ua

7. Yam tsawg kawg nkaus daws teeb meem: 1μΩ, 6-ntsis cov ntaub ntawv tso saib, zoo stability

8. Kub them nyiaj ua haujlwm tuaj yeem kho tau

9. Direct nyeem tus nqi thiab feem pua ​​​​kev ua yuam kev

10. Patented thev naus laus zis, koj tuaj yeem xa cov txiaj ntsig rau koj lub khoos phis tawm yam tsis muaj kev txhim kho software



Technical parameter:

Qauv	GW-R M13	GW-RM13 HM	GW-RM13S4	GW-RM13A	GW-RM13B
Test teeb liab	DC
Qhov tseeb tiag	{{0}}.05%+2 lus (3M ntau qhov tseeb ntawm 0.2%)			0.05%+2 lus	0.1%+2 lus
Kuaj ceev	Ceev: 40 zaug / s, nruab nrab: 15 zaug / s, qeeb: 6 zaug / s
Ntau hom	Tsis siv neeg, txuag
Trigger hom	Internal, phau ntawv, tsis siv neeg, sab nraud, tag nrho Circuit Court
Kuaj tam sim no	1A / 100mA / 10mA / 1mA / 100μA / 10μA / 1μA			100 mA / 10mA / 1mA / 100 μA / 10 μA	1A / 100mA / 10mA / 1mA / 100 μA
ntsuas qhov ntau	30mΩ/300mΩ/3Ω/300Ω/3KΩ/30KΩ/300 KΩ/3MΩ			300mΩ/3Ω/300Ω/3KΩ/ 30KΩ/300KΩ	30mΩ/300mΩ/3Ω/300Ω/3 KΩ/30KΩ

Zero clearing muaj nuj nqi	luv-circuit
Muab piv	BIN 0-BIN3, NG, Pass, Fail PASS, HI, LOW (PASS / FAIL LED zaub), Buzzer cue
Chaw nres nkoj	GPIB(optional), RS232C, UsbHost, USB Device, Handler
Memorizer	Sab hauv 50 pawg, sab nraud U disk 500 pawg ntawm cov ntaub ntawv
Kub thiab av noo	0 degree -40 degree , txheeb ze humidity Tsawg dua los yog sib npaug li 75%
Hwj chim kev xav tau	Voltage: 100-120Vac lossis 198-242Vac Zaus: 46-64Hz, lub zog ntau dua 50VA
Volume (W * H * D)	310 * 110 * 315 hli	216 * 87 * 300 hli	216 * 87 * 300 hli
Qhov hnyav	4.5kg ib	3.2kg ib	3.2kg ib



Fiber laser npav machine



Fiber laser npav tshuab qauv advantages:



Ntau lub thev naus laus zis tshiab ntawm GW-FLM30W series cov khoom lag luam coj cov neeg siv kev ua haujlwm tsis sib xws

1. Ua tiav cov kab noj hniav laser tsim, plua plav thiab tsis muaj Frost. Lub neej ntev, tsis ua haujlwm tsawg;

2. Lub tswv yim tag nrho cov ntaub thaiv npog laser txheej kab noj hniav tsim, tsis muaj cov hmoov txhuas raug, haum rau kev lag luam ib puag ncig, tiv thaiv kev cuam tshuam;

3. Tag nrho cov cua txias tub yees, siab tswj qhov tseeb, zoo laser stability, 24 xuab moos ua haujlwm tas li ntawm chav tsev kub;

4. Tshiab fiber ntau laser qhov, me me tam sim no fais fab mov, kev pab lub neej ntev ntawm lub twj tso kua mis module;

5. Modular qauv tsim, yooj yim kev sib koom ua ke thiab cov khoom siv tu;

6. Yooj yim rau kev kawm ua haujlwm software, kom cov neeg siv tau yooj yim pib.



Fiber laser npav tshuab lub ntsiab nta:

Cov khoom muaj cov yam ntxwv ntawm luv mem tes, zoo heev beam zoo, siab precision, ncov zog, siab modulation zaus thiab hais txog. Yog li hauv hlau thiab lwm yam



Kev ua daim ntawv thov ntawm cov khoom nto tuaj yeem txo qhov thermal melting nyhuv thiab ua tiav cov txiaj ntsig zoo meej. Tsis yog ntawm cov hlau nplaum kab kos, kuj haum rau cov khoom tsis yog xim hlau, xws li ABS, nylon, PES, PVC, polycarbonate thiab lwm yam.



Tam sim no, cov khoom siv no tau siv dav hauv cov hlau, hluav taws xob, khoos phis tawj, kev sib txuas lus, khoom siv hluav taws xob, watches, tsom iav, hniav nyiaj hniav kub, Khaub ncaws, khoom plig, khoom siv, cov cim kev lag luam, kev tsim tsheb, nkoj tsim thiab kev lag luam aerospace thiab ntau lwm yam. kev lag luam ntawm cov khoom lag luam Cov ntawv Nto, cov cim thiab lwm yam cim thiab micro ua. Ib txoj siv ua haujlwm tig tau txuas rau kev kos cov voj voog ncig, xws li lub nplhaib tiv thaiv lub khob sov, thiab lwm yam, tuaj yeem ua rau plaub-axis linkage marking.





Technical parameters ntawm fiber ntau laser npav tshuab:

Nruam tso zis zog	Ntau tshaj lossis sib npaug rau 30W
Laser hom	RC optical maser
Tus nqi rov ua dua	20-100KHz
Laser hom	Optical fiber ntau 1064mm
hluav taws xob	220V
Txias qhov system	Built-in cua txias
Adaptive khoom	Tag nrho cov ntaub ntawv hlau thiab ntau dua 85% cov ntaub ntawv yas
Laser hom M2	＜1.5
Marking qhov tob	0 001-0.5mm(nyob ntawm cov khoom)
Yam tsawg kawg kab dav	0.02 hli
Laser qhov chaw diam	0.015 hli
Yam tsawg kawg nkaus	0.015 hli
Rov ua dua qhov tseeb	0.002 hli
Kos ntau yam	150 * 150 hli
Txoj hauj lwm hom	Lub teeb liab positioning, tsom
Kev xav tau ib puag ncig	Kub: 0-40 degree C Humidity: 0-95%
Kev siv hluav taws xob tag nrho	500W
Qhov ceev tshaj plaws	20000mm / s
hnyav	65kg ua
Kev tu kom huv	1 xyoo tom qab kev pabcuam

Software tswj systemm muaj nuj nqi:



Ib lub cim tshiab ntawm cov ntaub ntawv ceev ceev nrog cov kev tswj hwm tshiab tshiab, los ntawm cov cim tsim ntawm machining graphic signals rau marking.High-speed real-time processing of control signals tsim cov qauv rau high-end daim ntawv thov hauv kev lag luam.

1. Txhawb dot matrix thiab vector cim

2. Txhawb cov ntaub ntawv tawm tswv yim tsim los ntawm kev lag luam thiab engineering kos duab software;

3. nplua nuj graphics editing zog;

4. Lub voj voog muaj zog thiab kho cov ntawv nyeem ua haujlwm

5. Txhawb cov font thiab kho txhua hom lus hauv ntiaj teb;

6. Hu ncaj qha rau Hom, Hom Tseeb, AFM, CID, CFF, SFNT, PRF thiab lwm yam fonts;

7. Lub cim ua haujlwm tuaj yeem raug txiav txim siab tsis txaus ntseeg, npaj ywj pheej, ua ke thiab hloov kho;

8. Cov duab kos ua ke ua haujlwm;



Ntshuam thiab export ntaub ntawv

1. Ntshuam cov ntaub ntawv txhawb PLT thiab DXF cov ntaub ntawv;

2. Txhawb cov ntaub ntawv bitmap;



General thiab tshwj xeeb bar code, ob-dimensional code

1. Txhawb nqa tus qauv kev lag luam code, 2/5 code, ASCII code, 128 code, EAN13 code; 2.EAN8 code, UPCA code, UPCE code cim;

3. Txhawb DATAMATRIX, Qr code, PDF417 code, 16K code;



Ua online laser marking tshuab



Uv laser marking tshuabne qauv nta:

Lub beam zoo yog siab, qhov chaw me me heev, thiab ultra-fine marking tuaj yeem pom tau. Ze-zoo meej cim zoo: 355nm tso zis wavelength txo cov thermal cuam tshuam ntawm lub workpiece;



High precision npav lub taub hau nrog galvanometer, zoo cim cov nyhuv thiab rov ua dua;

High precision thiab zoo lub teeb me ntsis kom paub meej cov txiaj ntsig zoo; Cov txheej txheem kev kos npe tsis yog kev sib cuag, cov txiaj ntsig kos npe yog nyob ruaj khov;

Uv laser npav tshuab muaj ntau yam kev thov;

Lub thermal cuam tshuam cheeb tsam me me, yuav tsis muaj thermal nyhuv, thiab cov khoom yuav tsis deformed los yog burnt;

Fast marking ceev thiab high efficiency; Lub tshuab tag nrho muaj kev ua haujlwm ruaj khov, me me thiab siv hluav taws xob tsawg. Nws yog qhov tsim nyog rau kev ua cov ntaub ntawv nrog cov thermal tawg loj heev;

tuaj yeem koom tes nrog cov kab ntau lawm, tsis siv neeg thauj khoom thiab tshem tawm, tsis siv neeg cov khoom siv hauv thiab tawm;

Tsim nyog rau kev kos npe rau cov khoom siv hlau thiab cov khoom tsis yog hlau feem ntau;





Lub ntsiab zoo ntawm UV laser mnkoj tshuab:



Ultraviolet laser vim hais tias qhov chaw tsom me me heev, thiab kev ua haujlwm kub cuam tshuam cheeb tsam me me, yog li nws tuaj yeem ua ultrafine marking, tshwj xeeb cov khoom siv kos npe, yog cov txiaj ntsig muaj ntau dua rau cov neeg siv khoom yuav tsum xaiv cov khoom.



Uv laser ntxiv rau cov khoom siv tooj liab, yuav luag tsim nyog rau kev ua txhua yam ntaub ntawv. Kev ua haujlwm yooj yim thiab yooj yim: cov txheej txheem ua haujlwm ntawm tib neeg, kev ruaj ntseg zoo ntawm cov cuab yeej ua haujlwm;



Kev tswj hwm software tshwj xeeb tuaj yeem sib xws nrog AutoCAD, CorelDRAW, Photoshop thiab lwm yam software tso tawm; Nws tuaj yeem paub qhov kev npaj tsis siv neeg thiab kev hloov pauv ntawm cov ntawv cim, duab nraaj, bar codes, ob-seem codes, serial tooj, thiab lwm yam.



Txhawb PLT, PCX, DXF, BMP, JPG thiab lwm yam ntaub ntawv tawm tswv yim, tuaj yeem siv TTF font ncaj qha; Lub taub hau laser tuaj yeem hloov kho lub kaum sab xis luam ntawv thiab qhov siab qhov chaw raws li qhov tseeb ntawm cov khoom.



Technical parameters ntawm UV laser npav tshuab:



Laser wavelength: 355nm

Pump hom: semiconductor kawg twj tso kua mis

Beam zoo: M2<1.2

Laser hwj chim: 5W

Laser repetition zaus: 10KHZ--100KHZ

Marking ntau: 180mm × 180mm

Marking ceev: Tsawg dua los yog sib npaug rau 12000mm / s

Yam tsawg kawg nkaus: 0.1mm

Rov ua dua qhov tseeb qhov tseeb: 5um Txias txoj kev: dej txias

Fais fab mov: 220V / 50HZ / 2KVA

Kev xaiv thiab khoom siv: ua haujlwm platform, laser, vibrating lens, jig



Uv laser marking tshuab applicatintawm thiab kev ua lag luam:

Feem ntau siv nyob rau hauv high-end kev ua lag luam ntawm ultra-nplua nuj ua, tshuaj, tshuaj pleev ib ce, video thiab lwm yam polymer cov ntaub ntawv ntim lub raj mis nto marking, cov nyhuv yog zoo heev, cim thiab tu kom ruaj khov, zoo dua number case coding thiab tsis muaj kuab paug;

Saj zawg zog pcb board marking, scribing;

Silicon wafer microhole, dig muag qhov ua; LCD kua siv lead ua iav ob-dimensional code cim, iav khoom siv

Surface drilling, hlau nto txheej cim, cov yas yas, cov khoom siv hluav taws xob, khoom plig, khoom siv sib txuas lus, cov khoom siv hauv tsev thiab lwm yam





Cim npe nrov: Transformer kev xeem cov khoom, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe, ua nyob rau hauv Suav teb
